Heated Window

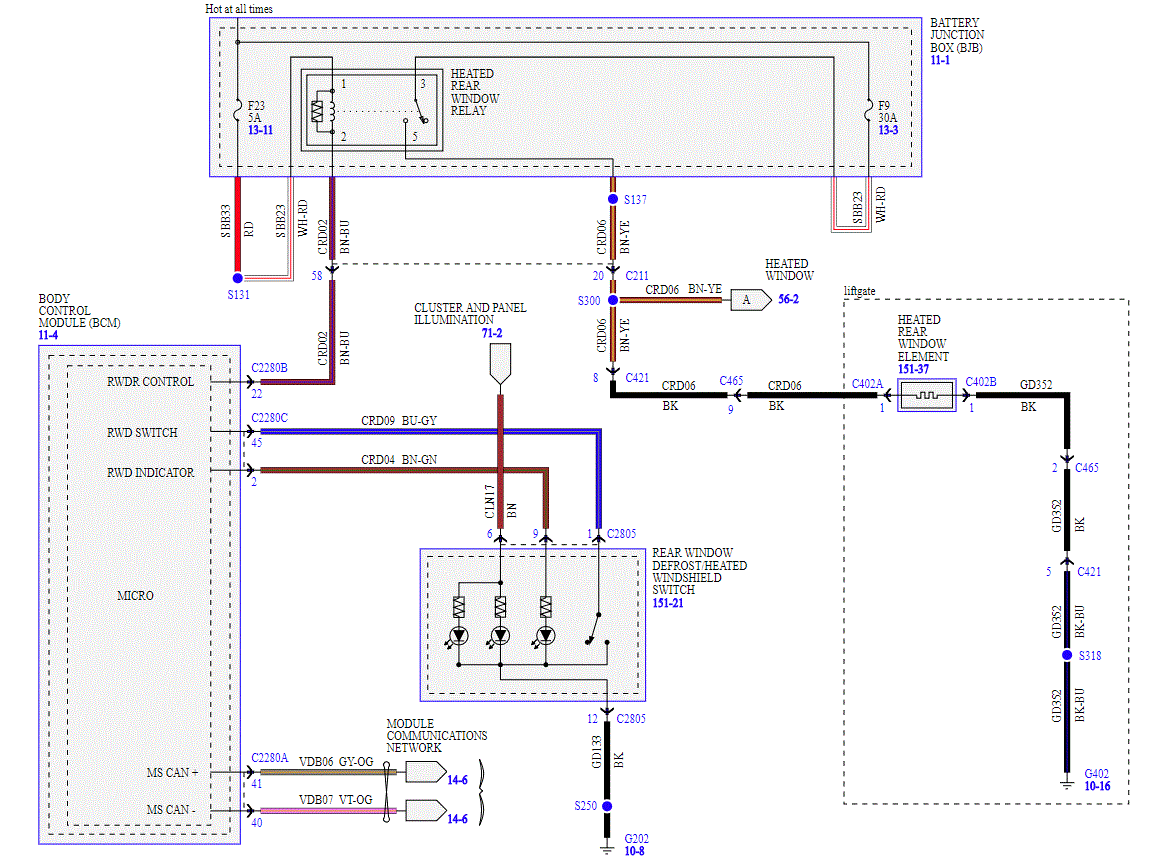

Fig 1: Heated Window Wiring Diagram (1 of 4)
GFDW86635Courtesy of FORD MOTOR COMPANY

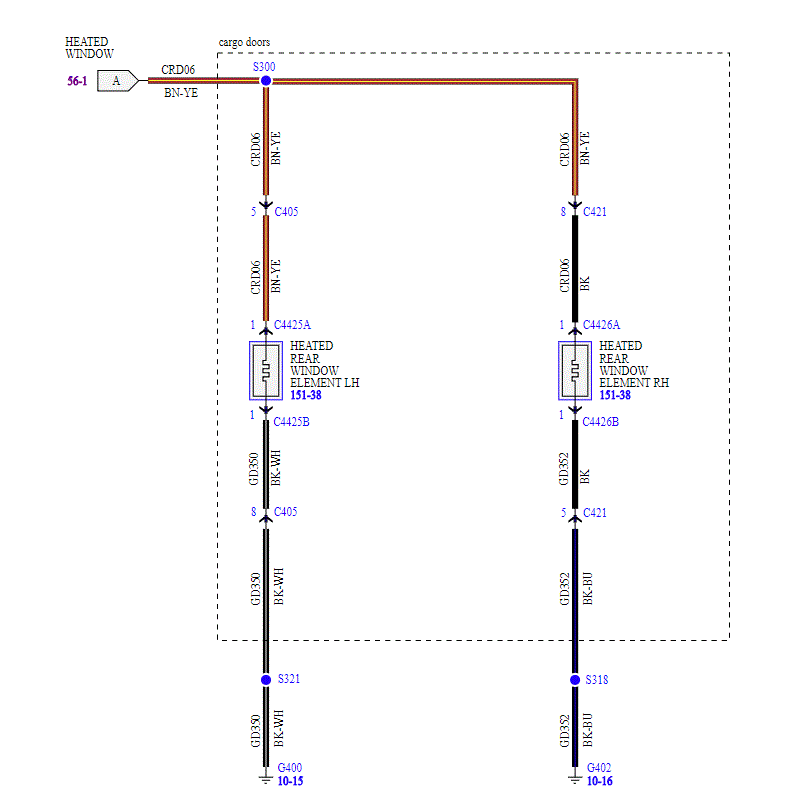

Fig 2: Heated Window Wiring Diagram (2 of 4)
GFDW86636Courtesy of FORD MOTOR COMPANY

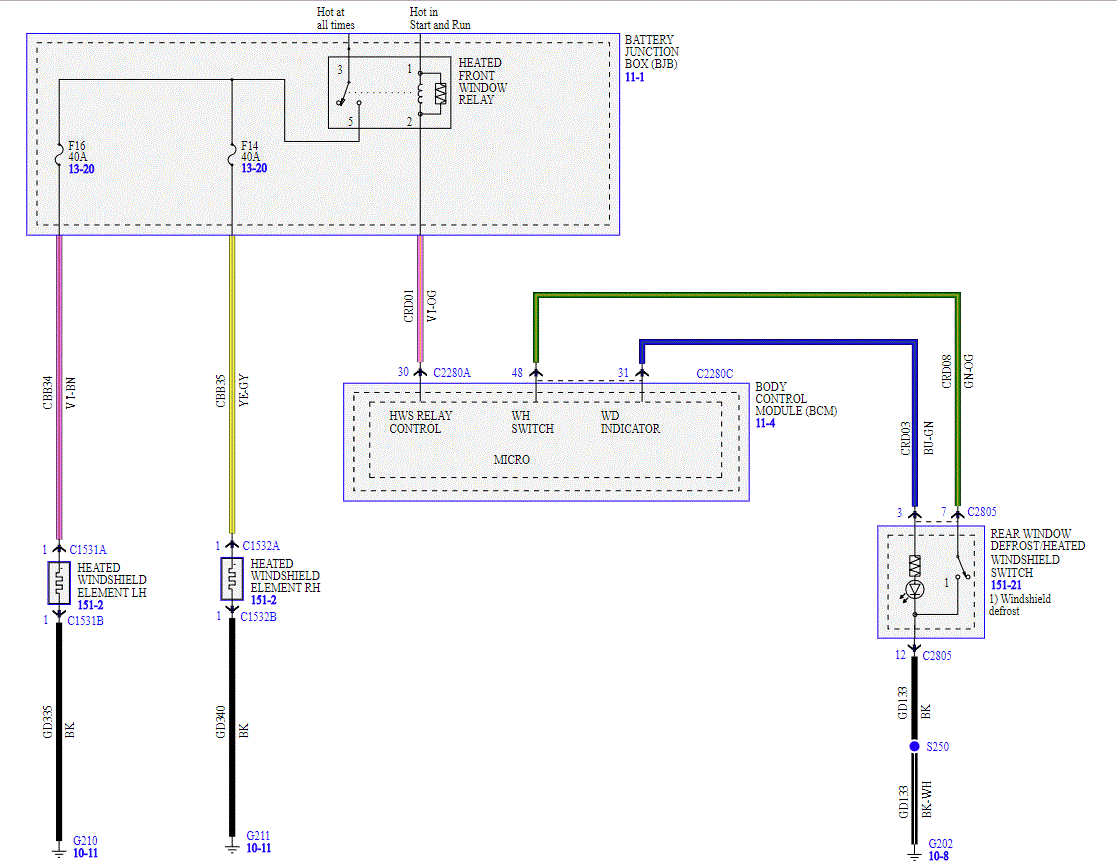

Fig 3: Heated Window Wiring Diagram (3 of 4)
GFDW86637Courtesy of FORD MOTOR COMPANY

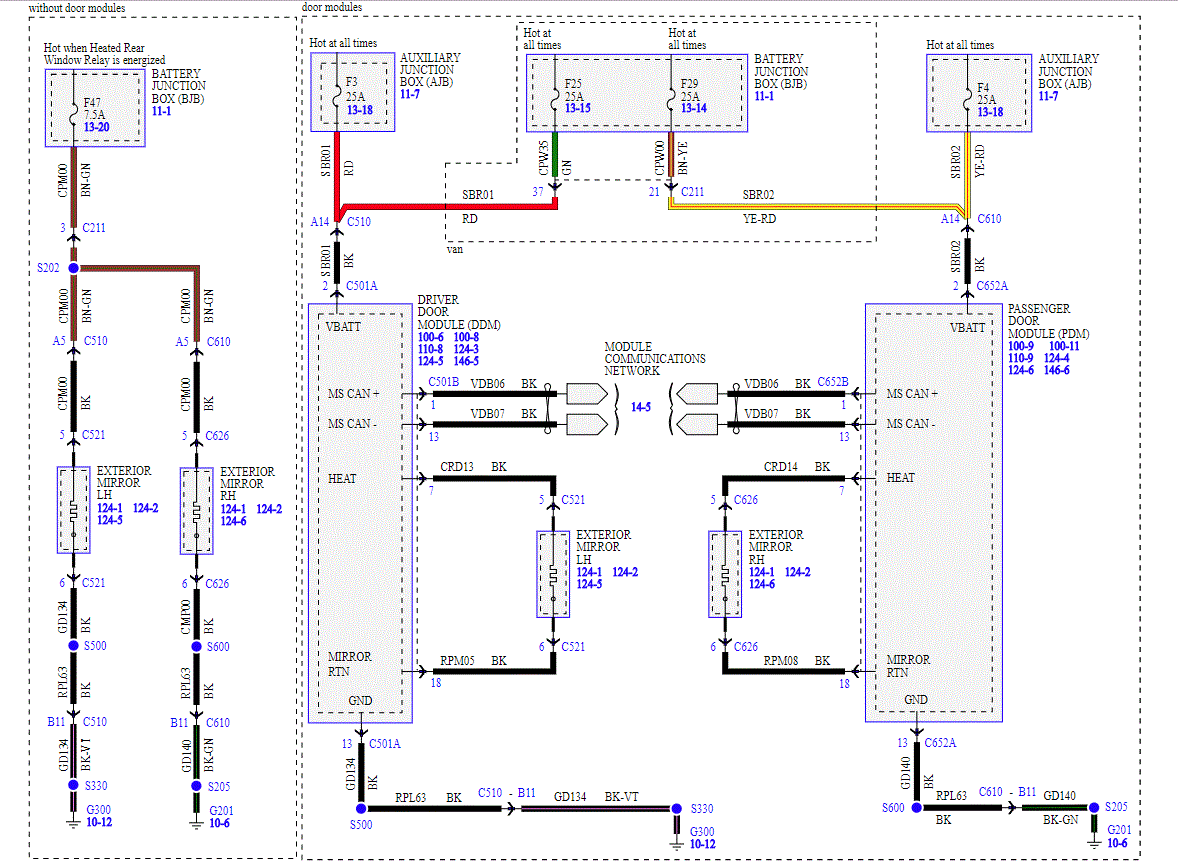

Fig 4: Heated Window Wiring Diagram (4 of 4)
GFDW86638Courtesy of FORD MOTOR COMPANY
