Electronic Engine Controls - 1.0L ECOBOOST

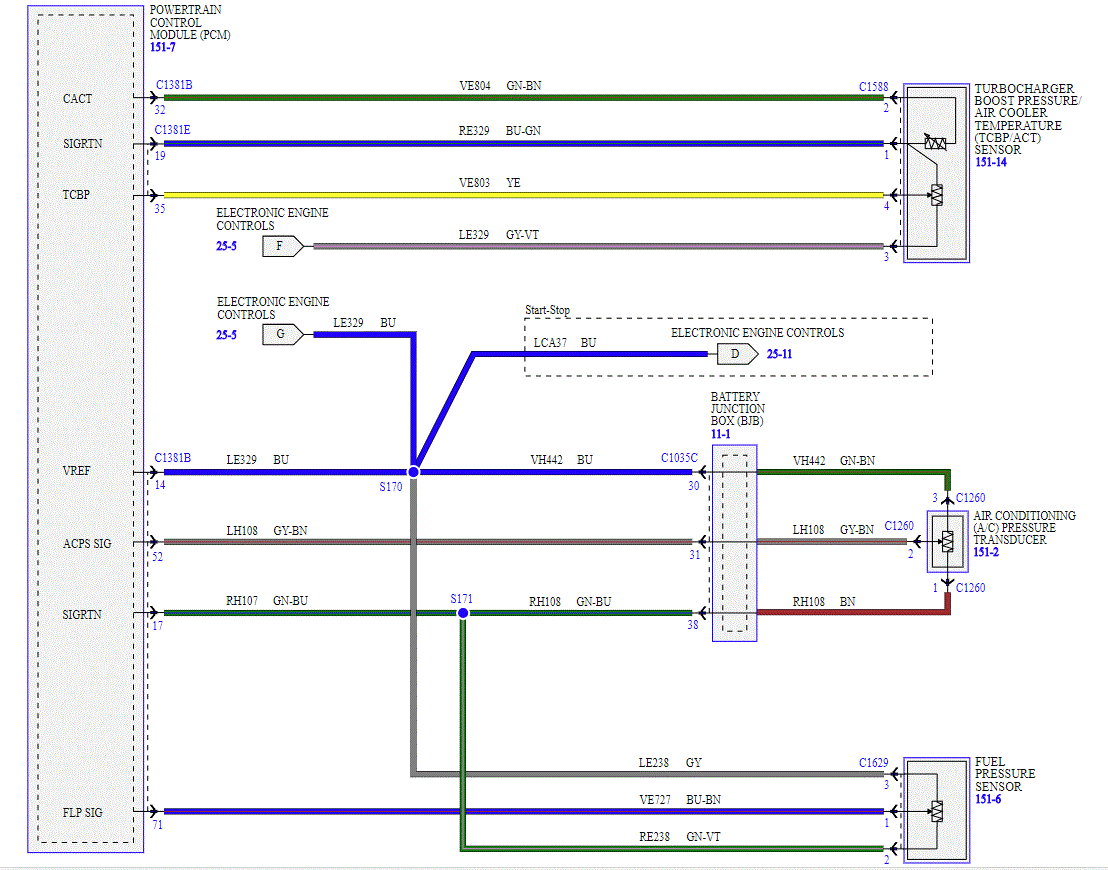

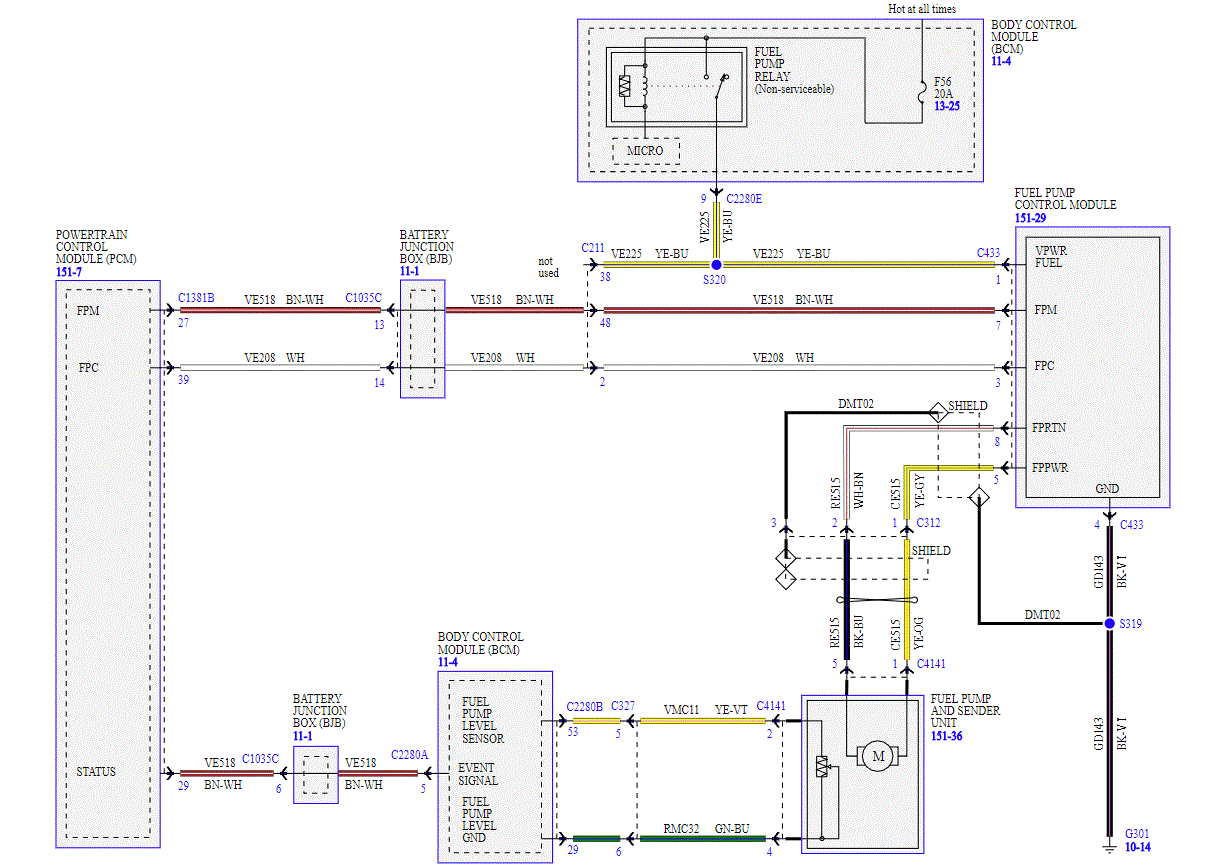

Fig 1: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (1 of 13)

Courtesy of FORD MOTOR COMPANY

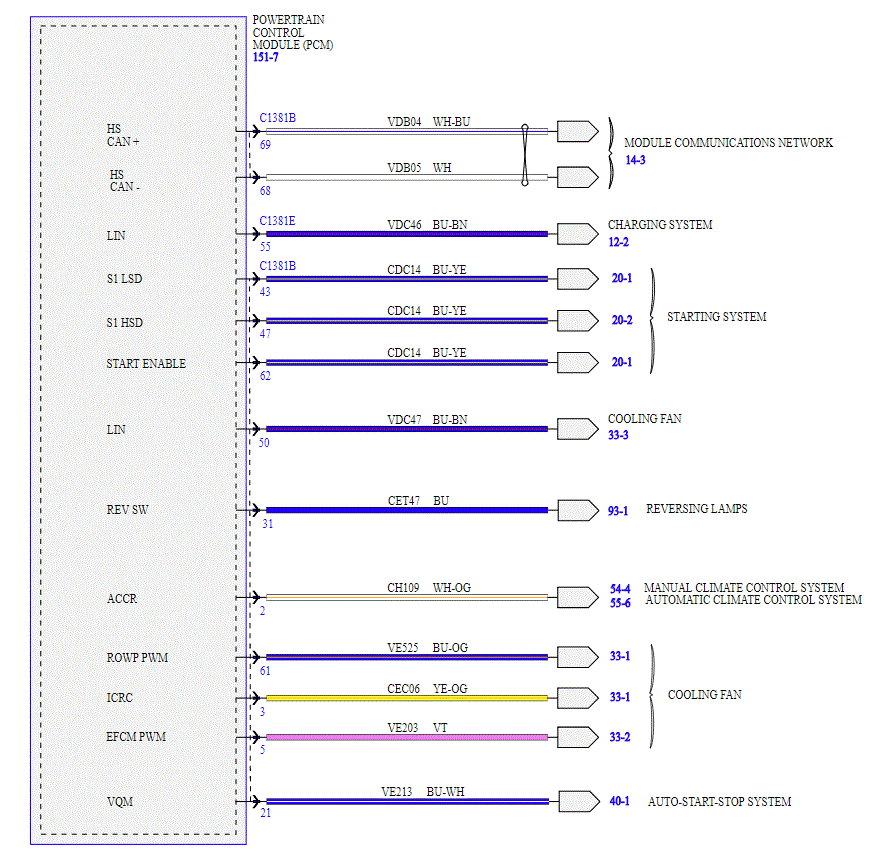

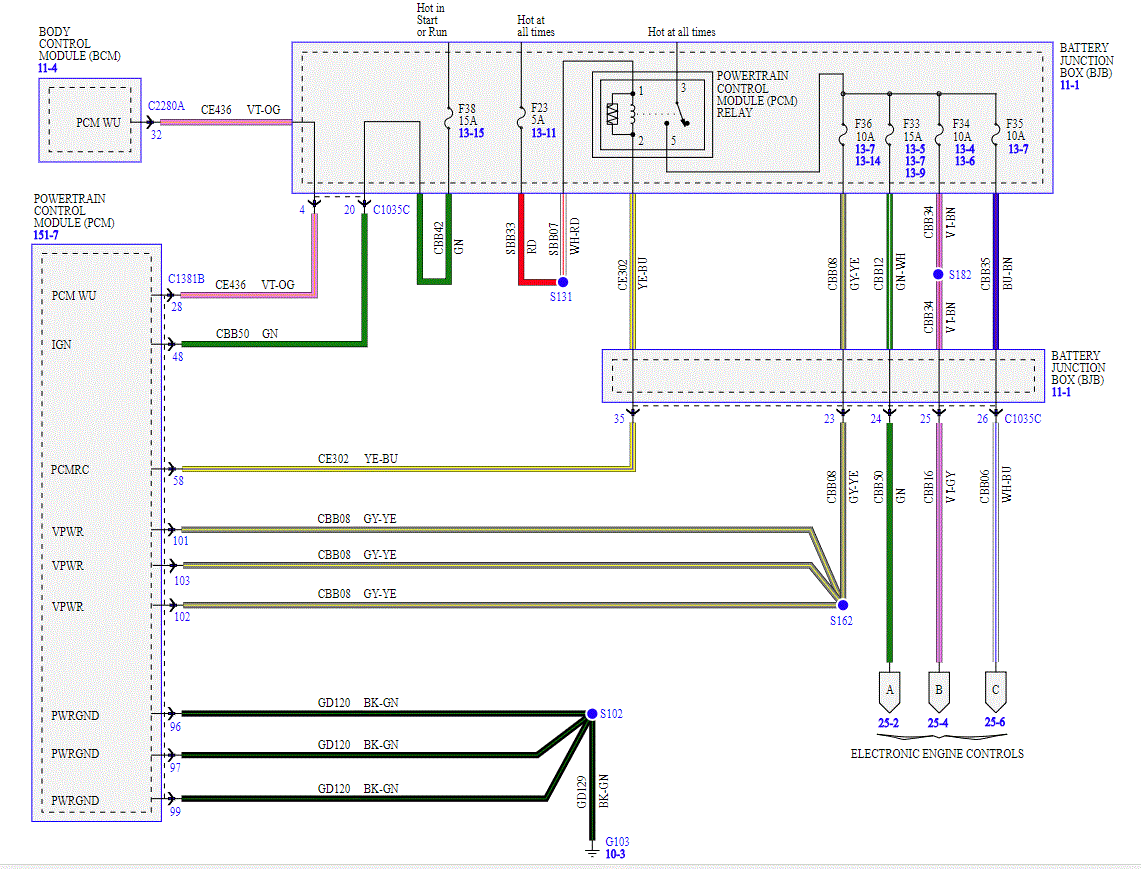

Fig 2: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (2 of 13)

Courtesy of FORD MOTOR COMPANY

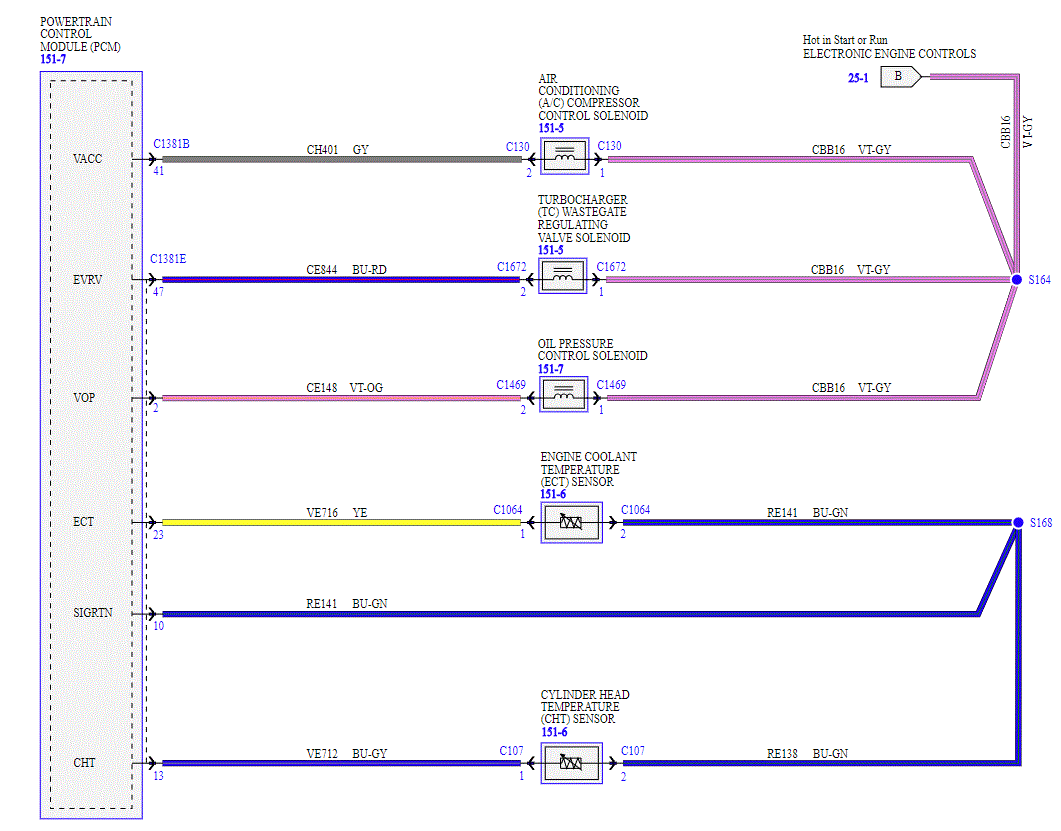

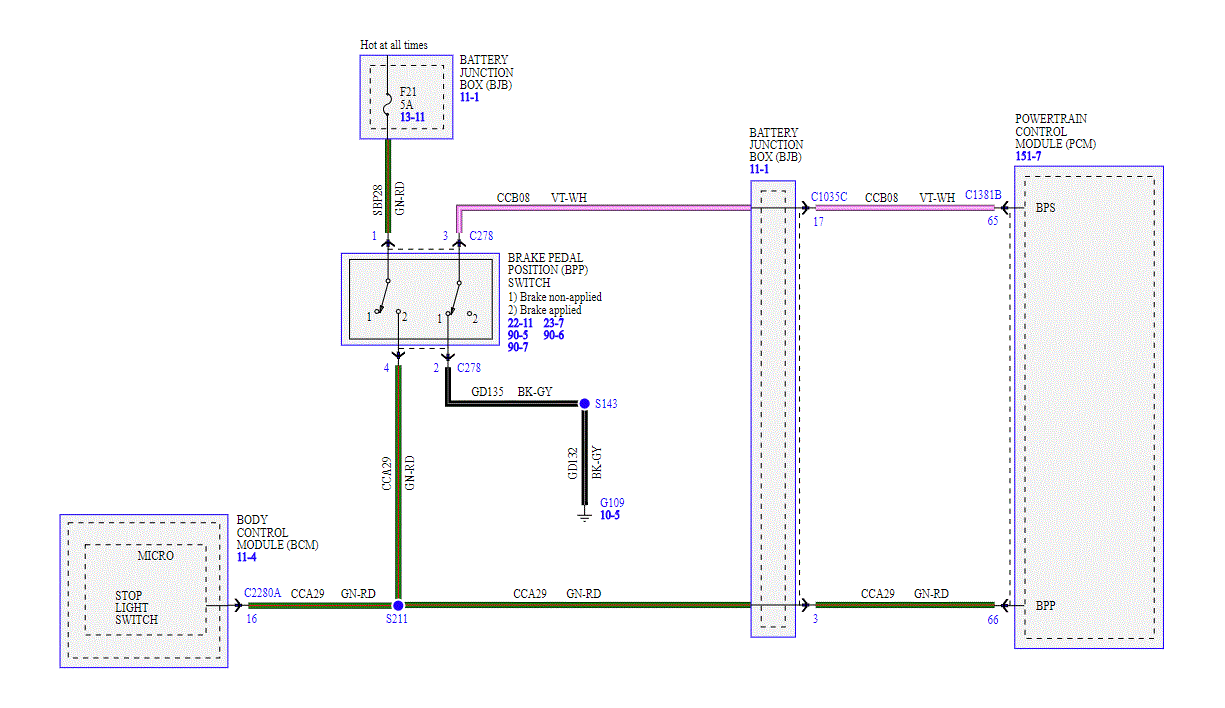

Fig 3: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (3 of 13)

Courtesy of FORD MOTOR COMPANY

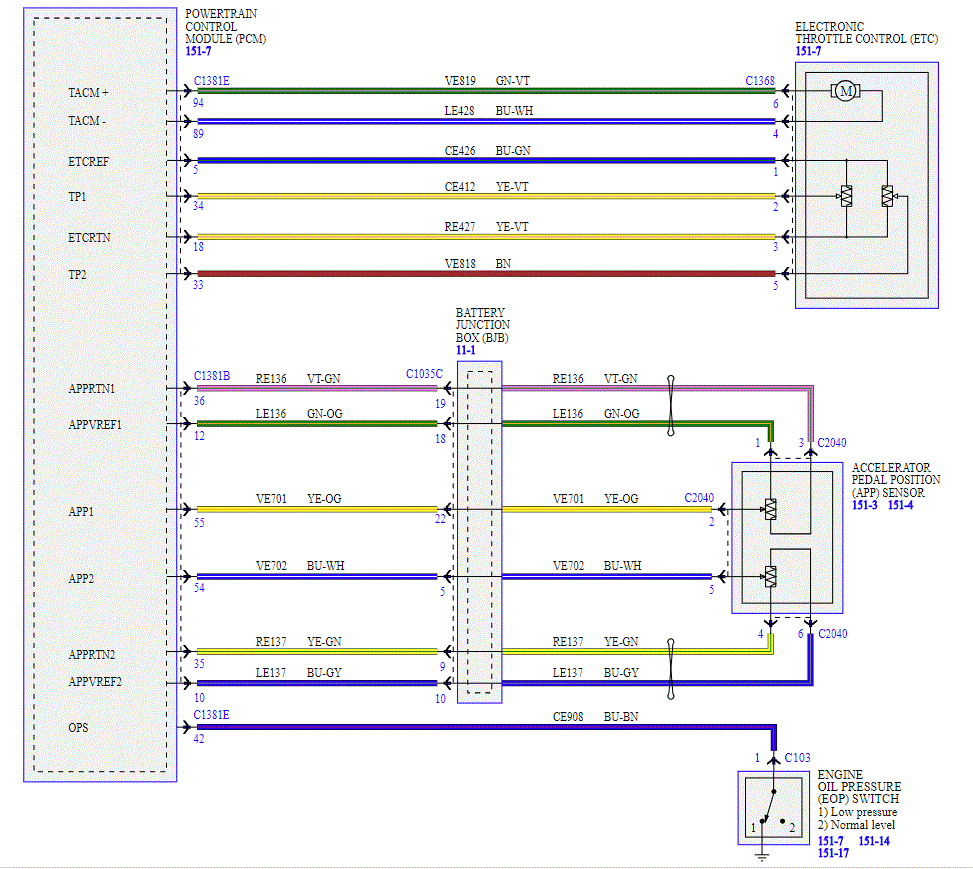

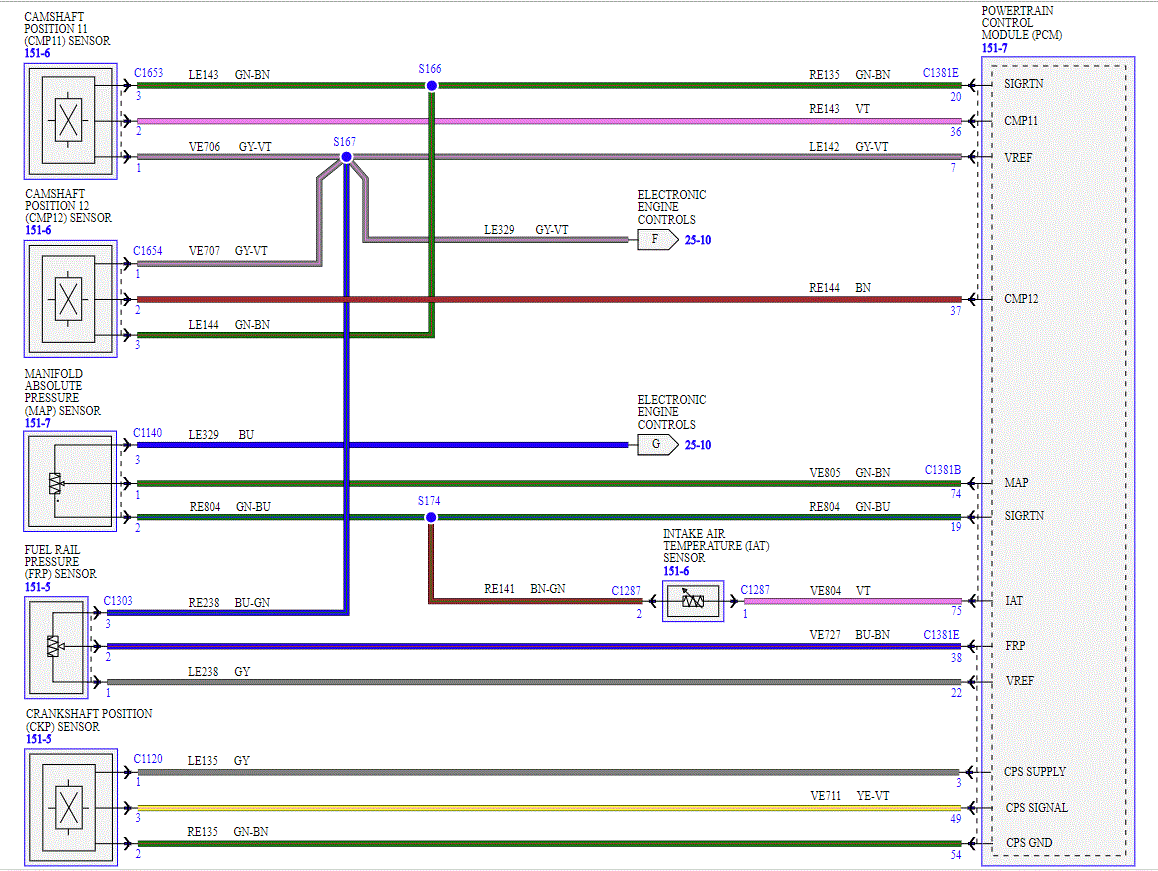

Fig 4: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (4 of 13)

Courtesy of FORD MOTOR COMPANY

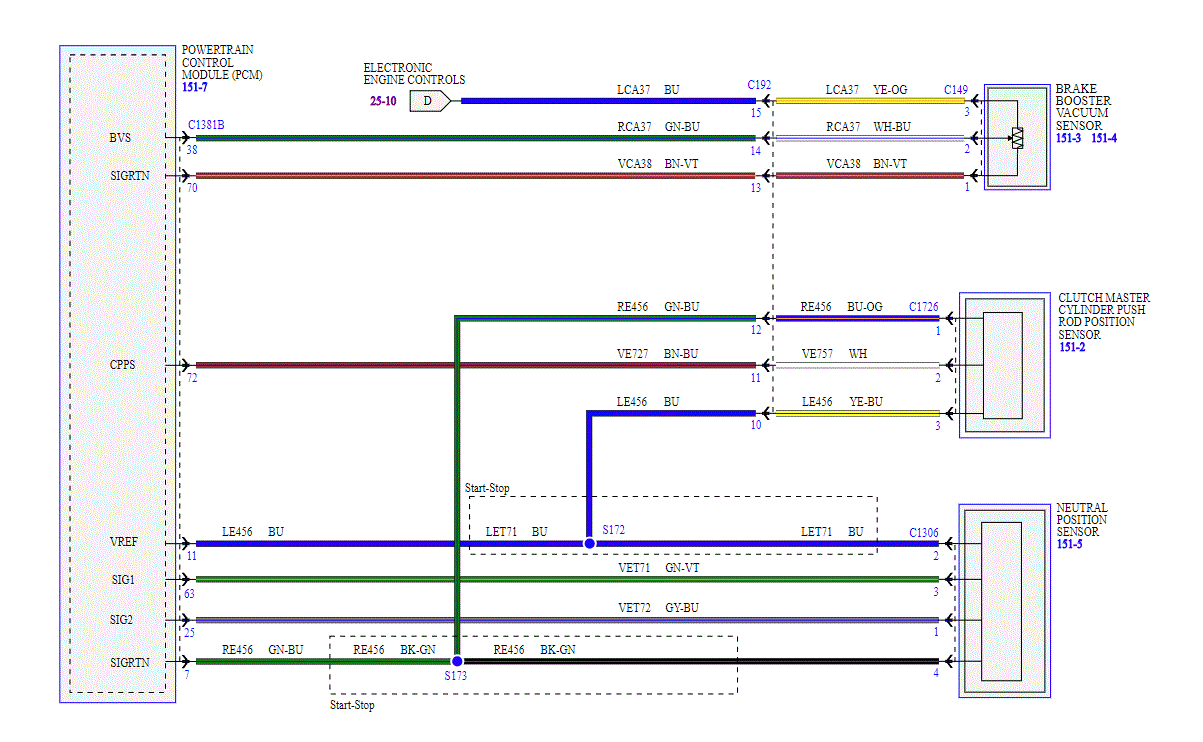

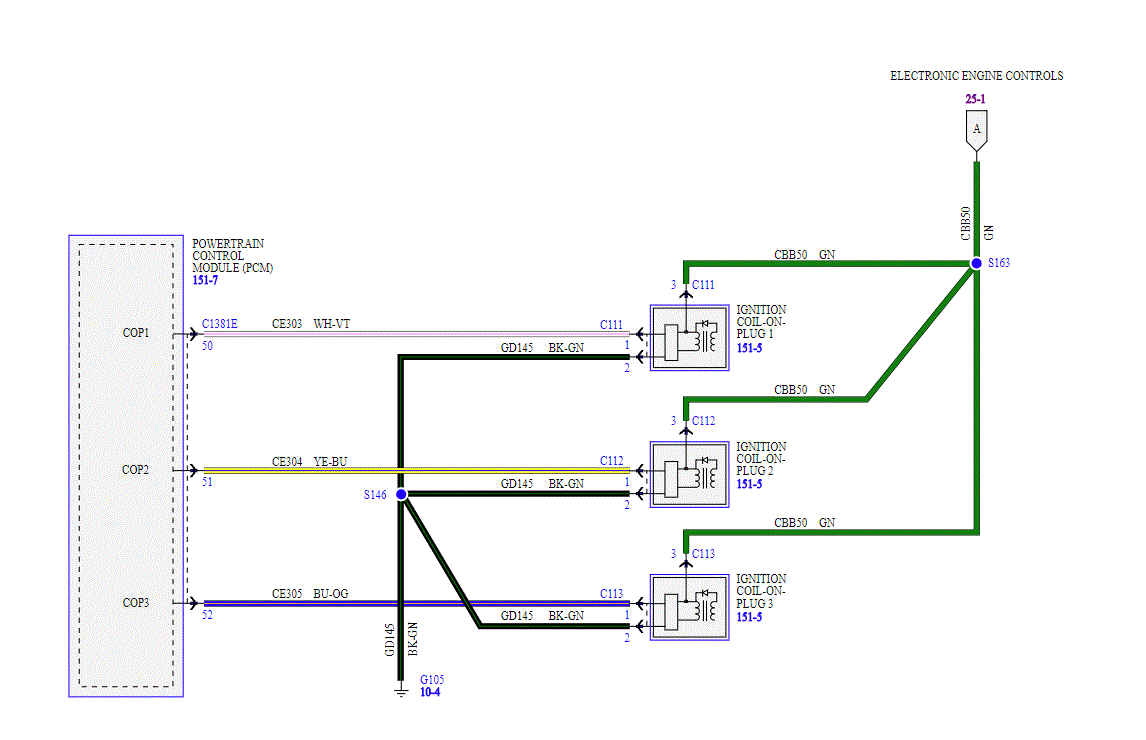

Fig 5: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (5 of 13)

Courtesy of FORD MOTOR COMPANY

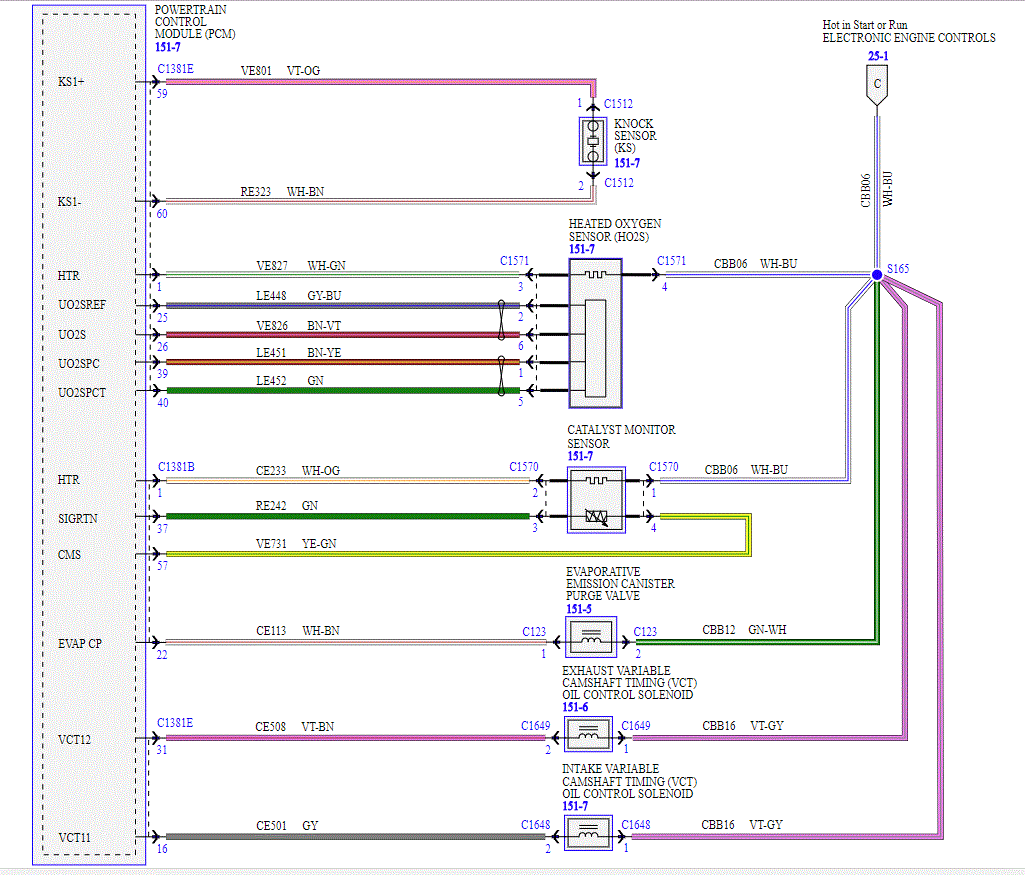

Fig 6: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (6 of 13)

Courtesy of FORD MOTOR COMPANY

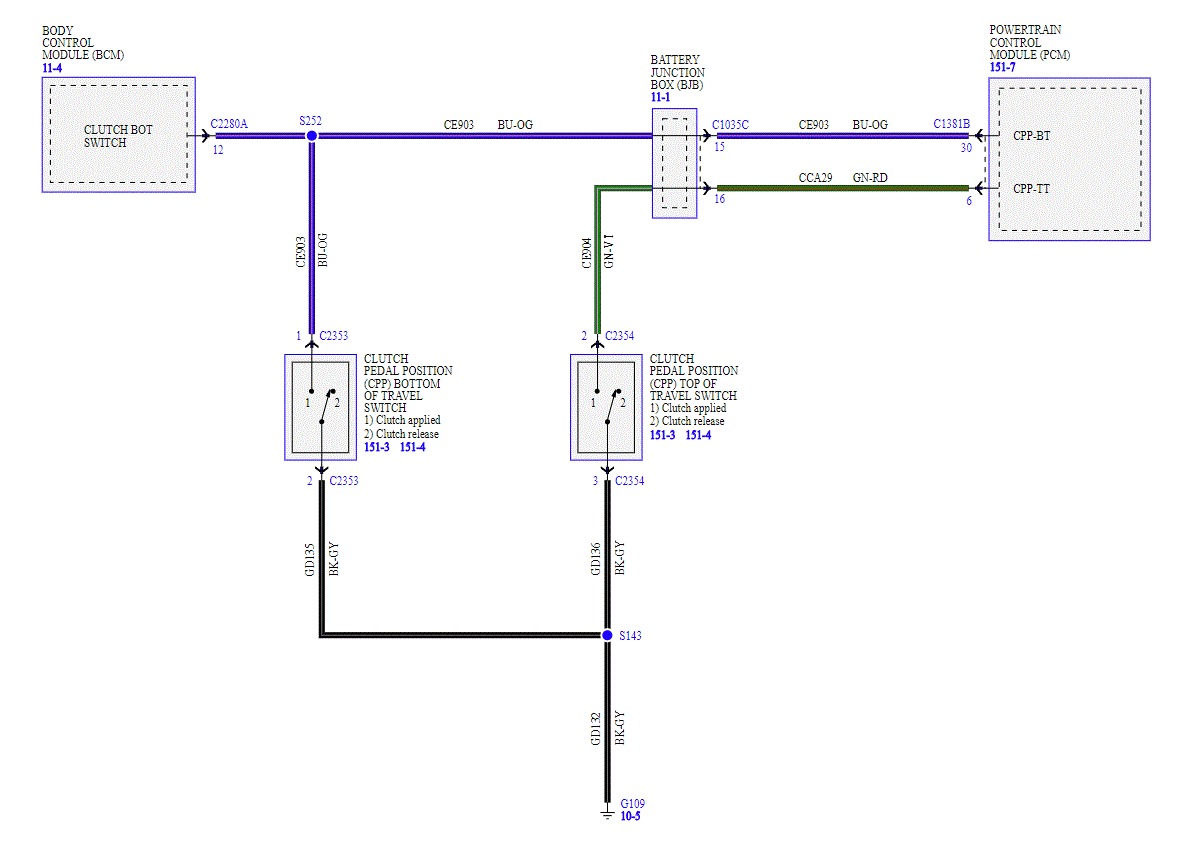

Fig 7: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (7 of 13)

Courtesy of FORD MOTOR COMPANY

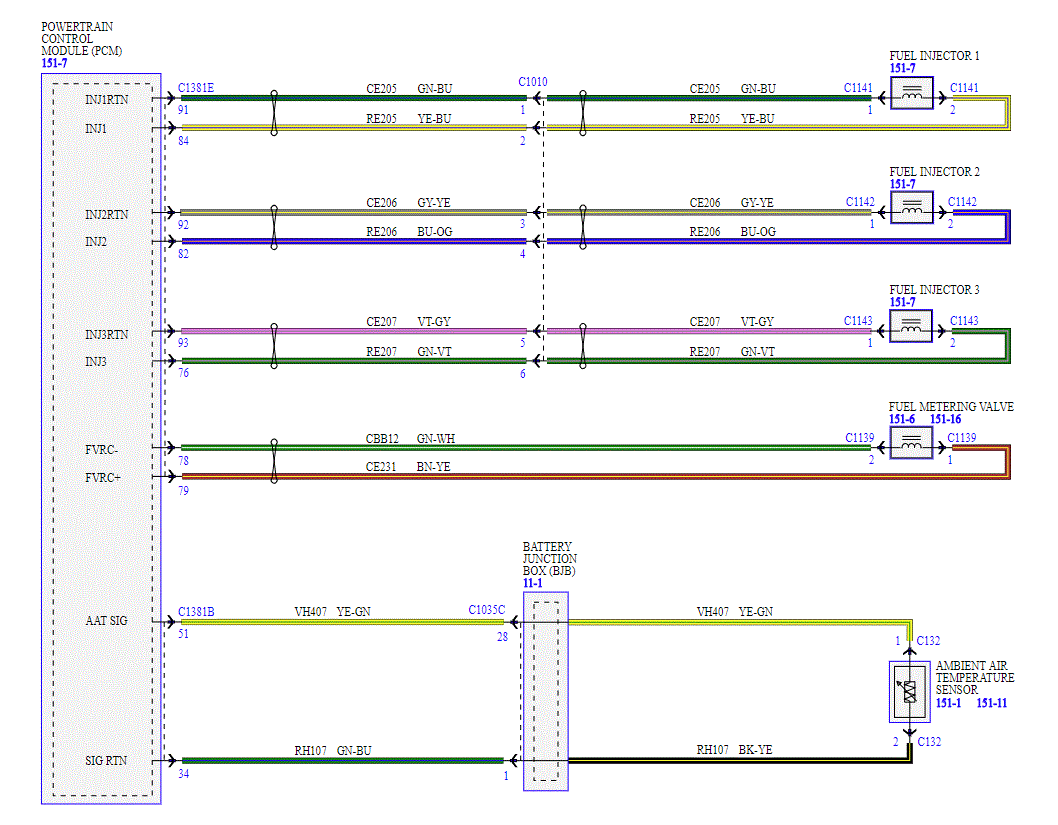

Fig 8: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (8 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (9 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (10 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (11 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (12 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (13 of 13)

Courtesy of FORD MOTOR COMPANY
