Cooling Fan

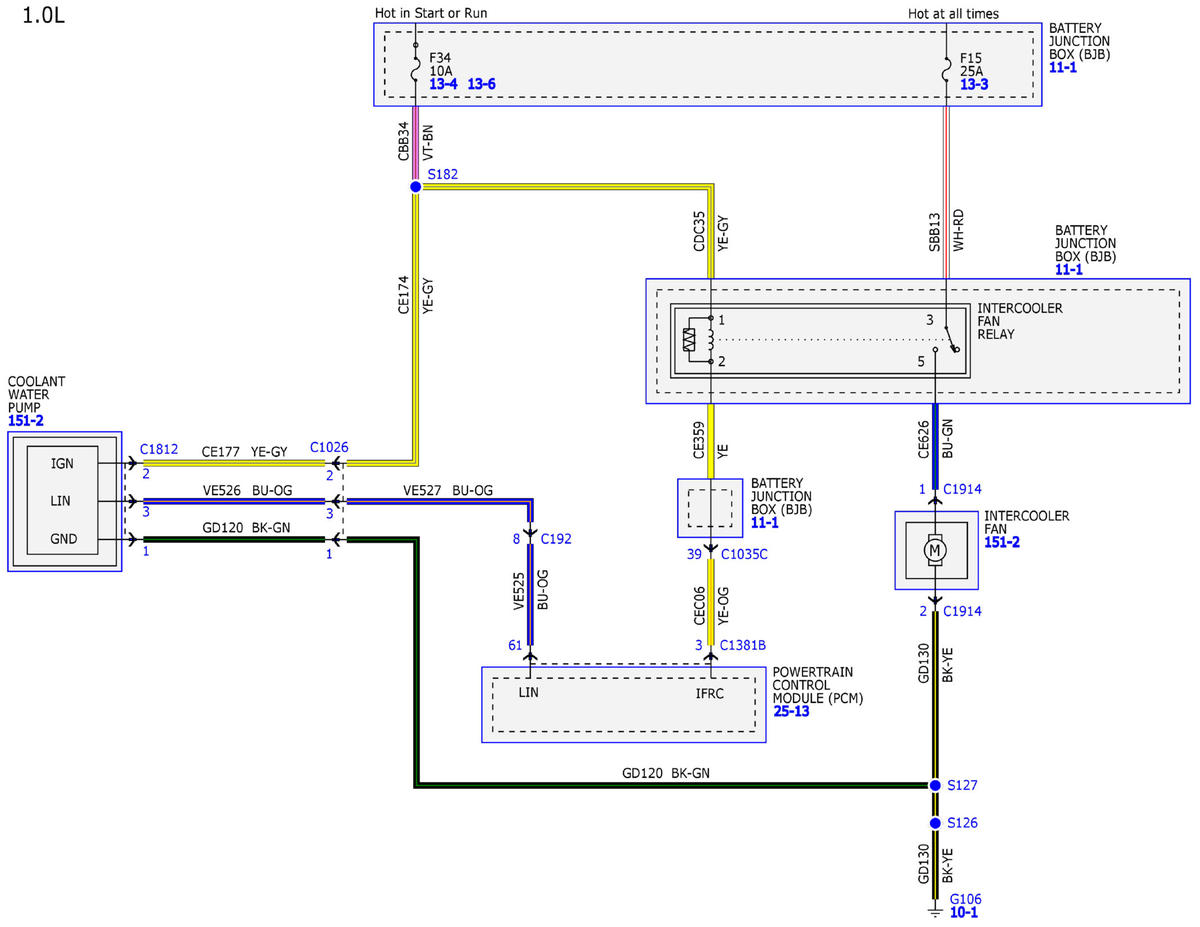

Fig 1: Cooling Fan Wiring Diagram (1 of 4)
GFDW85721Courtesy of FORD MOTOR COMPANY

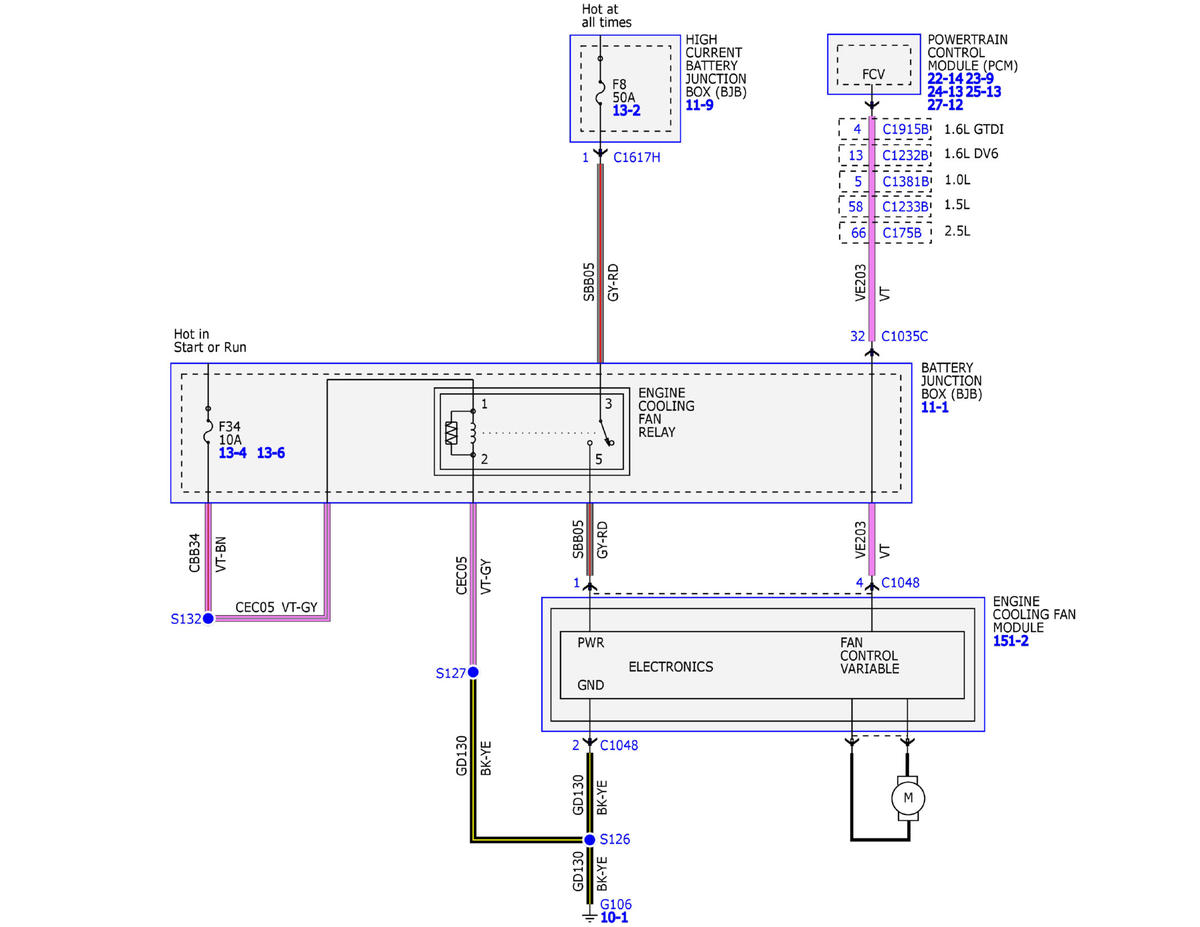

Fig 2: Cooling Fan Wiring Diagram (2 of 4)
GFDW85722Courtesy of FORD MOTOR COMPANY

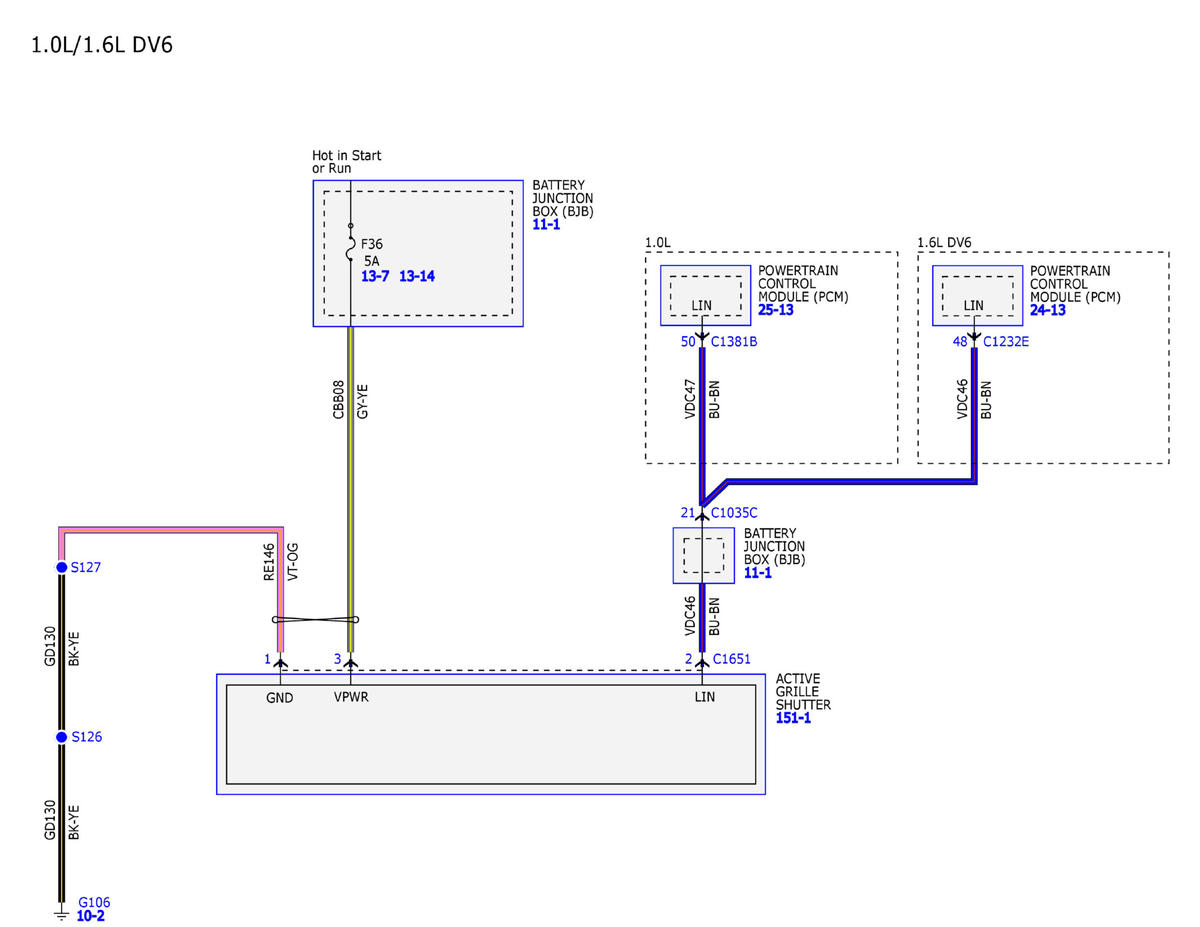

Fig 3: Cooling Fan Wiring Diagram (3 of 4)
GFDW85723Courtesy of FORD MOTOR COMPANY

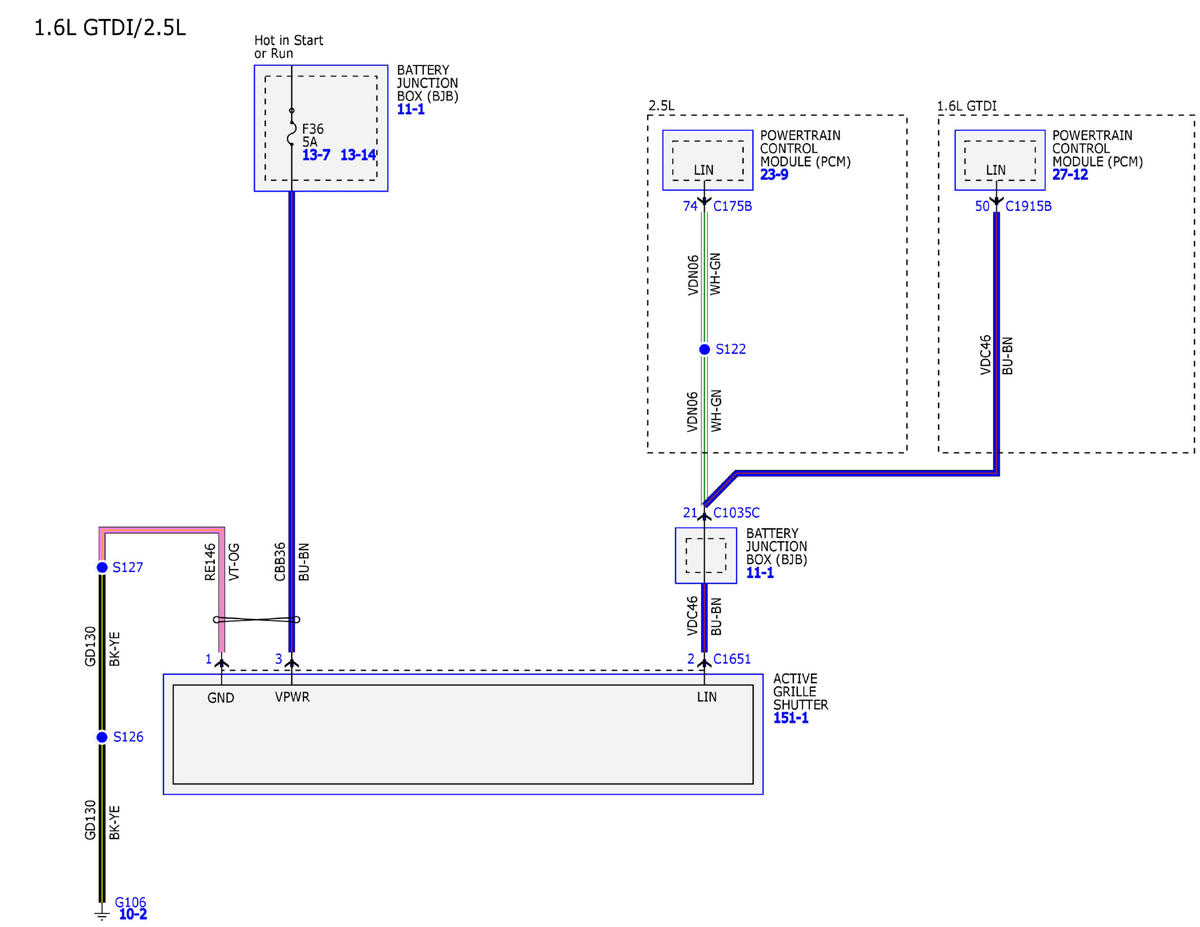

Fig 4: Cooling Fan Wiring Diagram (4 of 4)
GFDW85724Courtesy of FORD MOTOR COMPANY
