Exterior Rear View Mirror Switch - 2-way Windows Without Door Modules

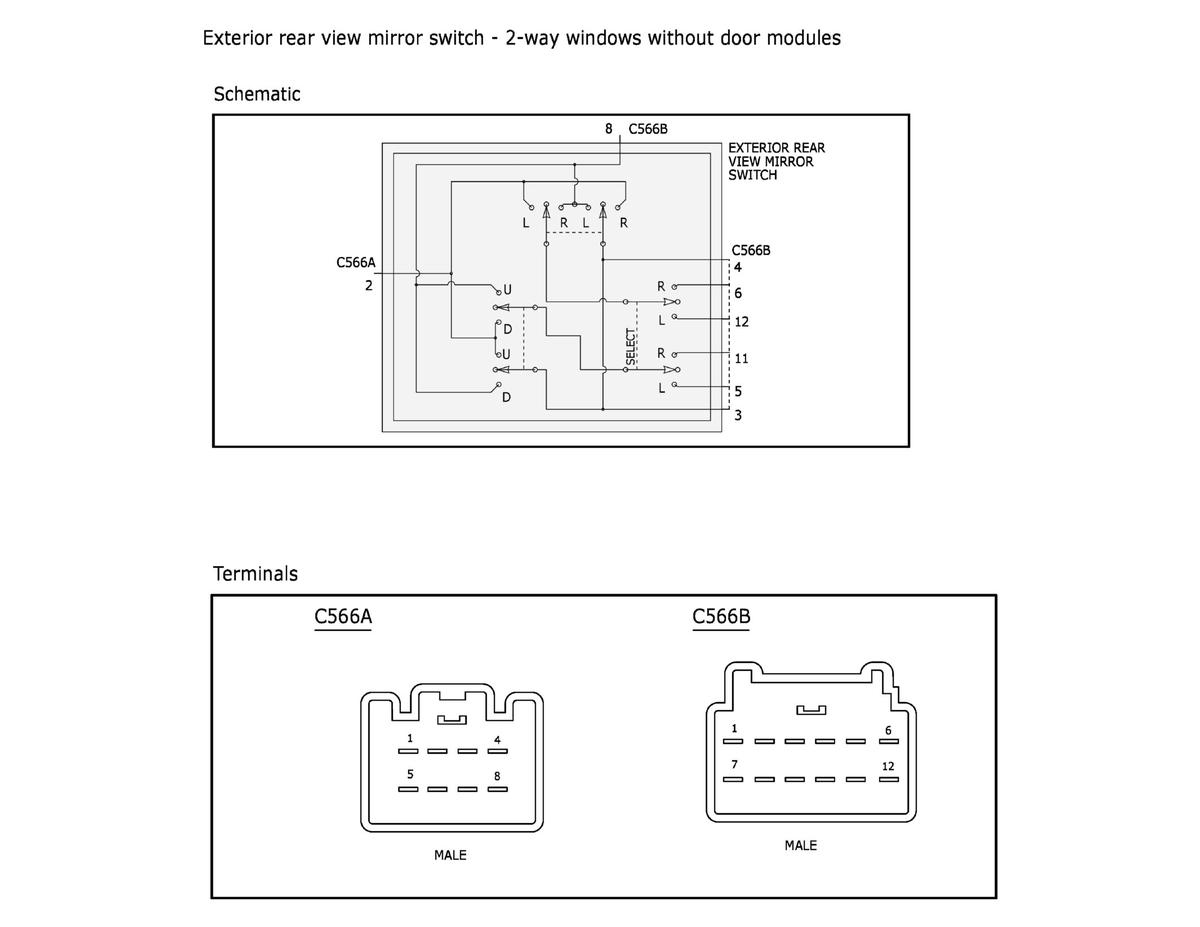

Fig 1: Exterior Rear View Mirror Switch - 2-way Windows Without Door Modules (1 of 2)
GFDW85942Courtesy of FORD MOTOR COMPANY

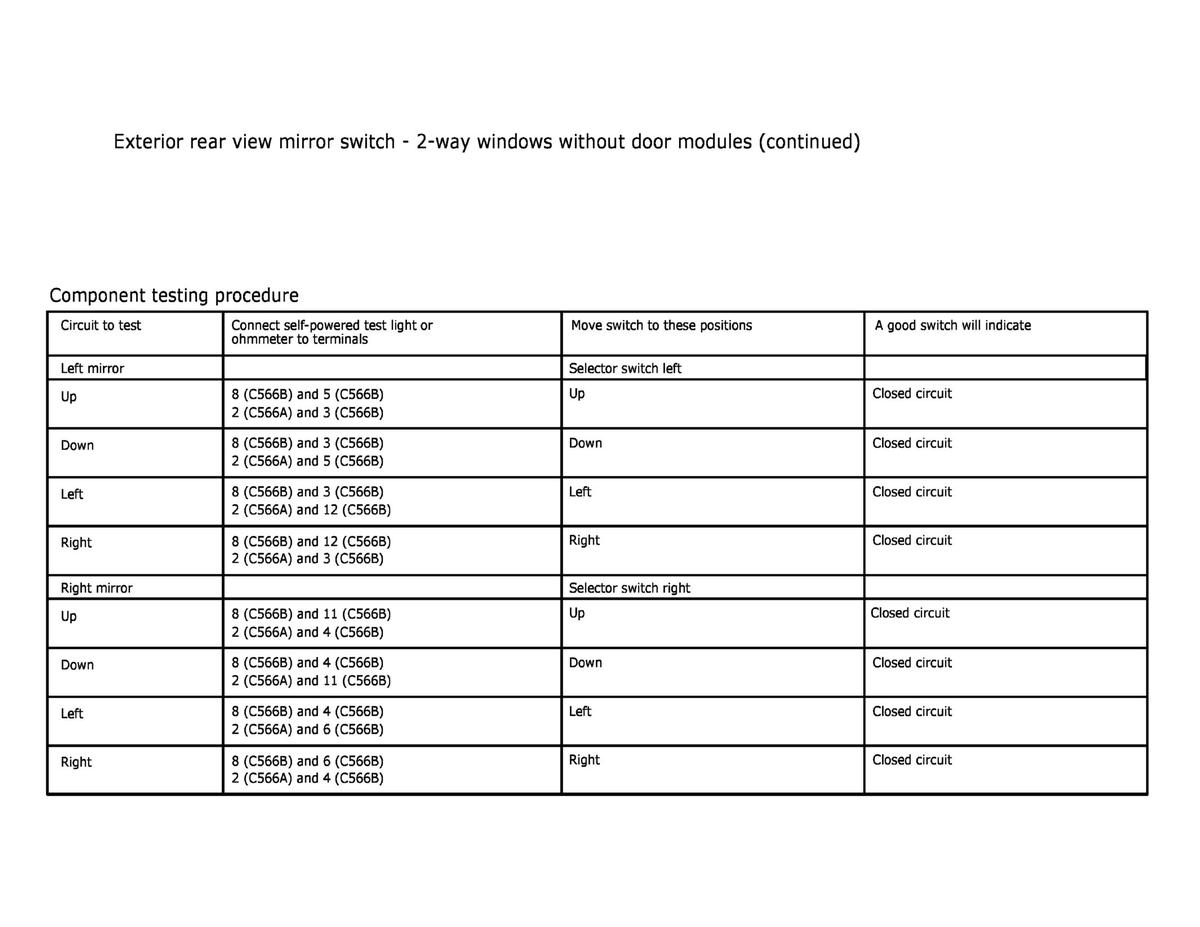

Fig 2: Exterior Rear View Mirror Switch - 2-way Windows Without Door Modules (2 of 2)
GFDW85943Courtesy of FORD MOTOR COMPANY
