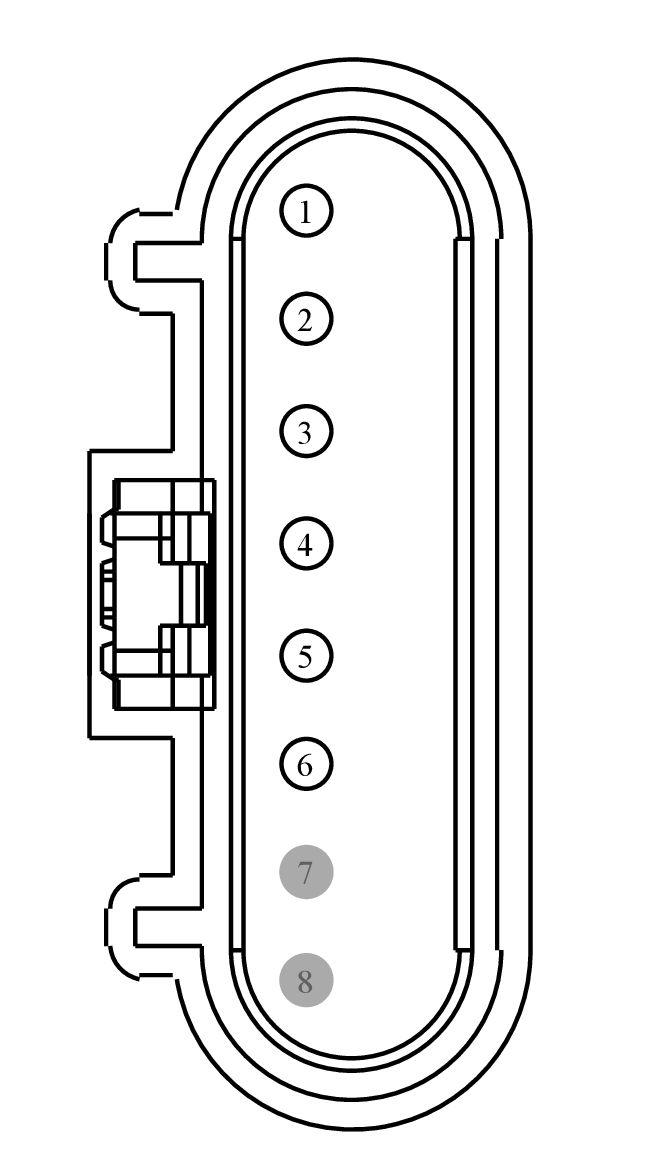

Connector End View (C808) - SLIDING DOOR LATCH RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C808 | SLIDING DOOR LATCH RH | BK | 14026 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL53 (BK) | 16 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | N/A | ||||
| 1 | CPL54 (BK) | 20 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | WITH DOOR MODULES | N/A | |||
| 2 | CPL11 (BK) | 20 | CTRL MOD. - DOOR LOCK # DRIVER LOCK | WITH DOOR MODULES | N/A | |||
| 2 | CPL11 (BK) | 16 | CTRL MOD. - DOOR LOCK # DRIVER LOCK | N/A | ||||
| 3 | CPL09 (BK) | 20 | CTRL MOD. - DOOR LOCK # DOUBLE LOCK REAR PASSENGER SIDE | WITH DOOR MODULES | N/A | |||
| 3 | CPL12 (BK) | 16 | CTRL MOD. - DOOR LOCK # DRIVER LOCK | N/A | ||||
| 4 | GD140 (BK) | 18 | GROUND - PILLAR A RIGHT # 3RD STUD | N/A | ||||
| 4 | GD140 (BK) | 22 | GROUND - PILLAR A RIGHT # 3RD STUD | N/A | ||||
| 4 | RPL72 (BK) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER | WITH DOOR MODULES | N/A | |||
| 5 | CPL38 (BK) | 22 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | WITH DOOR MODULES | N/A | |||
| 5 | CPL53 (BK) | 16 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | N/A | ||||
| 6 | CPL39 (BK) | 20 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1366
Service Part Number:
3U2Z-14S411-MBB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Liftgate
- Switch - Door Ajar / Interior Lamp
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Sliding Door Contact
