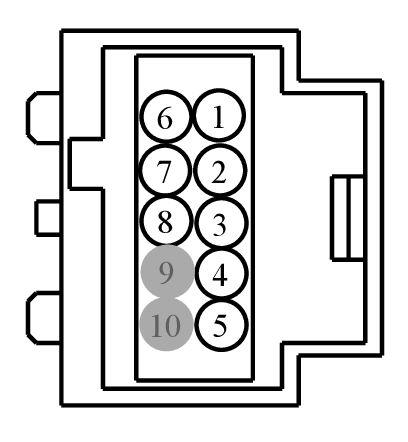

Connector End View (C626) - EXTERIOR MIRROR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C626	EXTERIOR MIRROR RH	GY	14K138	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPM00 (BK)	20	SWITCH - VALET MODE # SET	WITHOUT DOOR MODULE	N/A
1	CPM34 (BK)	22	SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS)	WITH DOOR MODULE	N/A
2	CPM00 (BK)	20	SWITCH - VALET MODE # SET	WITHOUT DOOR MODULE	N/A
2	CPM06 (BK)	22	CTRL MOD. - LEFT MIRROR FOLD IN	WITH DOOR MODULE	N/A
3	CPM00 (BK)	20	SWITCH - VALET MODE # SET	WITHOUT DOOR MODULE	N/A
3	CPM33 (BK)	22	SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS)	WITH DOOR MODULE	N/A
4	CPM07 (BK)	22	CTRL MOD. - LEFT MIRROR FOLD IN	N/A
5	CPM00 (BK)	20	SWITCH - VALET MODE # SET	WITHOUT DOOR MODULE	N/A
5	CRD14 (BK)	22	SWITCH - HEATER REAR WINDOW	WITH DOOR MODULE	N/A
6	CPM00 (BK)	22	SWITCH - VALET MODE # SET	WITHOUT DOOR MODULE	N/A
6	RPM08 (BK)	22	CTRL MOD. - RIGHT MIRROR RETURN	WITH DOOR MODULE	N/A
7	CRB07 (BK)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG ON (A)	N/A
8	RRB07 (BK)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # RETURN	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
