Connector End View (C610) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C610	INLINE	BK	14K13814014	See Below

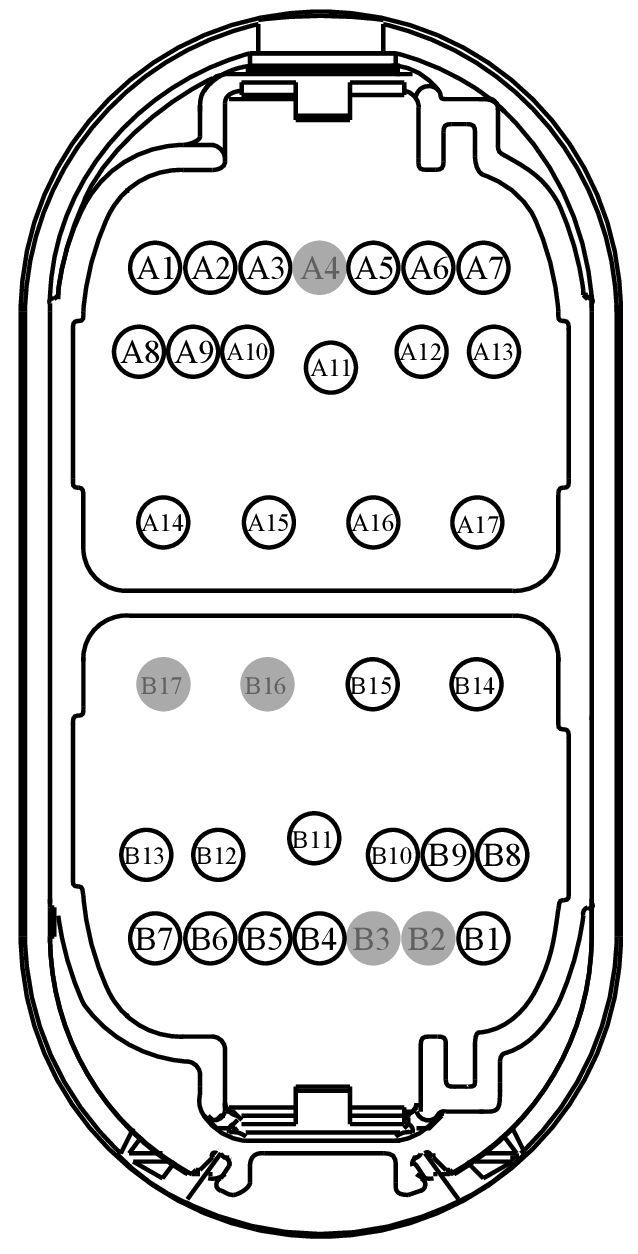

MALE

Harness

14K138

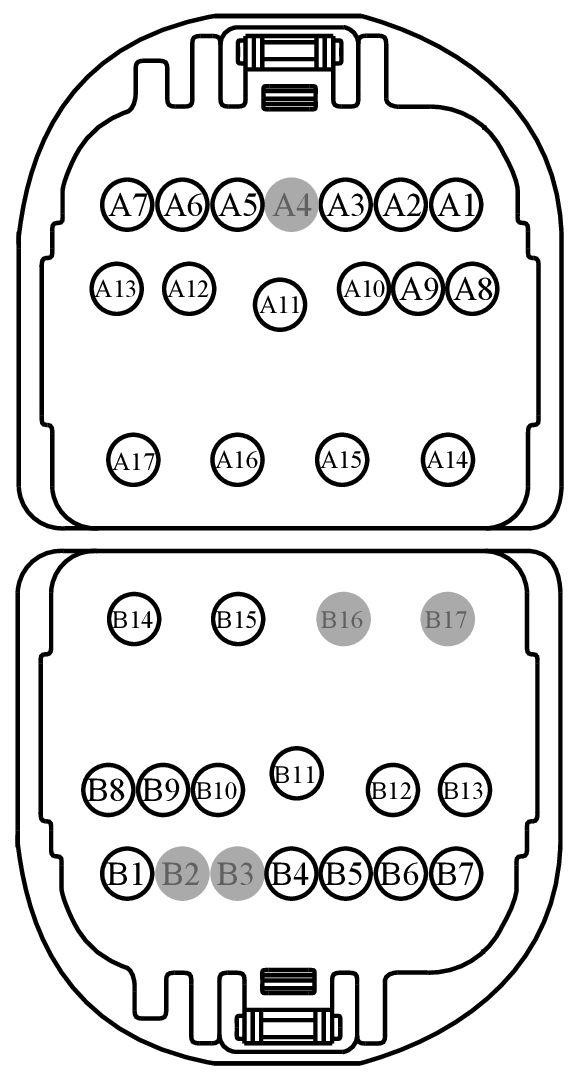

FEMALE

Harness

14014

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
A1	CPM00 (BK)	20	N/A
A1	VDB06 (BK)	18	N/A
A2	CPM00 (BK)	20	N/A
A2	VDB07 (BK)	18	N/A
A3	CPM00 (BK)	20	N/A
A5	CPM00 (BK)	20	N/A
A12	CPL51 (BK)	16	N/A
A13	CLS26 (BU-GY)	18	N/A
A14	CPW00 (BK)	12	N/A
A14	SBR02 (BK)	12	N/A
A15	CPW00 (BK)	12	N/A
A16	CPW00 (BK)	12	N/A
A16	VPW33 (BK)	18	N/A
B1	CPL31 (BK)	20	N/A
B4	RME10 (BK)	18	N/A
B5	VME10 (BK)	18	N/A
B6	CR152 (BK)	20	N/A
B7	RR152 (BK)	20	N/A
B8	CPL43 (BK)	20	N/A
B9	CPL42 (BK)	20	N/A
B10	CLN17 (BK)	20	N/A
B11	RPL63 (BK)	12	N/A
B12	CPL02 (BK)	16	N/A
B13	CPL06 (BK)	16	N/A
B14	CPL11 (BK)	16	N/A
B14	VDB06 (BK)	18	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
A1	CPM00 (BN-GN)	22	N/A
A2	CPM00 (VT-GN)	22	N/A
A3	CBP17 (BN-GN)	22	N/A
A3	CPM00 (BK-VT)	22	N/A
A4	*	*	N/A
A5	CPM00 (BN-GN)	22	N/A
A6	CR152 (GY-YE)	20	N/A
A6	CR153 (GN-WH)	20	N/A
A6	VR217 (GY-YE)	20	N/A
A7	RR131 (VT-GY)	20	N/A
A7	RR152 (YE-VT)	20	N/A
A7	RR153 (GY-BU)	20	N/A
A8	CPL43 (VT-GY)	22	N/A
A9	CPL42 (GY-YE)	22	N/A
A10	CLN17 (BN)	22	N/A
A11	GD140 (BK-GN)	12	N/A
A12	CPL02 (GY-BN)	16	N/A
A12	CPL51 (WH-OG)	16	N/A
A13	CLS26 (YE)	16	N/A
A13	CPL06 (WH-OG)	16	N/A
A14	CPL11 (GY-BN)	18	N/A
A14	CPW00 (BN-YE)	12	N/A
A14	CPW00 (BN-YE)	12	14014 - without door module	N/A
A14	CPW16 (BU-OG)	12	N/A
A14	SBR02 (YE-RD)	12	14014 - with door module	N/A
A14	SBR07 (YE-RD)	12	14014 - with door module	N/A
A14	VDB06 (GY-OG)	22	N/A
A15	CPW00 (BN-GN)	12	N/A
A15	RPW09 (BN-WH)	12	N/A
A15	VDB07 (VT-OG)	22	N/A
A16	CPW00 (WH-VT)	12	N/A
A16	CPW17 (BN-GN)	12	N/A
A16	VPW33 (VT-BN)	22	N/A
A17	CPW18 (GY-VT)	12	N/A
B1	CPL31 (WH)	20	N/A
B2	*	*	N/A
B3	*	*	N/A
B4	RME10 (WH-OG)	18	N/A
B5	VME10 (WH-VT)	18	N/A
B6	CR152 (GY-YE)	20	N/A
B6	CR153 (GN-WH)	20	N/A
B6	VR217 (GY-YE)	20	N/A
B7	RR131 (VT-GY)	20	N/A
B7	RR152 (GY-YE)	20	N/A
B7	RR153 (GY-BU)	20	N/A
B8	CPL43 (VT-GY)	22	N/A
B9	CPL42 (GY-YE)	22	N/A
B10	CLN17 (BN)	22	N/A
B11	GD140 (BK-GN)	12	N/A
B12	CPL02 (GY-BN)	16	N/A
B13	CPL06 (WH-OG)	16	N/A
B14	CPL11 (GY-BN)	18	N/A
B14	VDB06 (GY-OG)	22	N/A
B15	VDB07 (VT-OG)	22	N/A
B16	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1576

Service Part Number:

KU2Z-14S411-CA

Gauge:

14 16 20

Pin material:

Tin & Tin (greased)

Cavities:

34

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1519

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-RA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

17

Vehicle Uses:

• Connector - Inline
