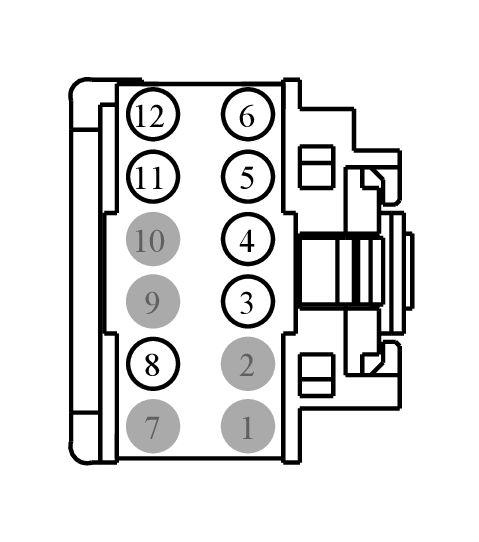

Connector End View (C566B) - DRIVER DOOR WINDOW CONTROL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C566B	DRIVER DOOR WINDOW CONTROL SWITCH	BK	14A584	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
3	CPM00 (BK)	22	SWITCH - VALET MODE # SET	RHD	N/A
4	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
4	CPM00 (BK)	22	SWITCH - VALET MODE # SET	RHD	N/A
5	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
5	CPM00 (BK)	22	SWITCH - VALET MODE # SET	RHD	N/A
6	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
6	CPM00 (BK)	22	SWITCH - VALET MODE # SET	RHD	N/A
7	*	*	Not Used	N/A
8	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
11	CPM00 (BK)	22	SWITCH - VALET MODE # SET	RHD	N/A
12	CPM00 (BK)	20	SWITCH - VALET MODE # SET	N/A
12	CPM00 (BK)	22	SWITCH - VALET MODE # SET	RHD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1166

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-UA

Gauge:

18

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Clockspring
