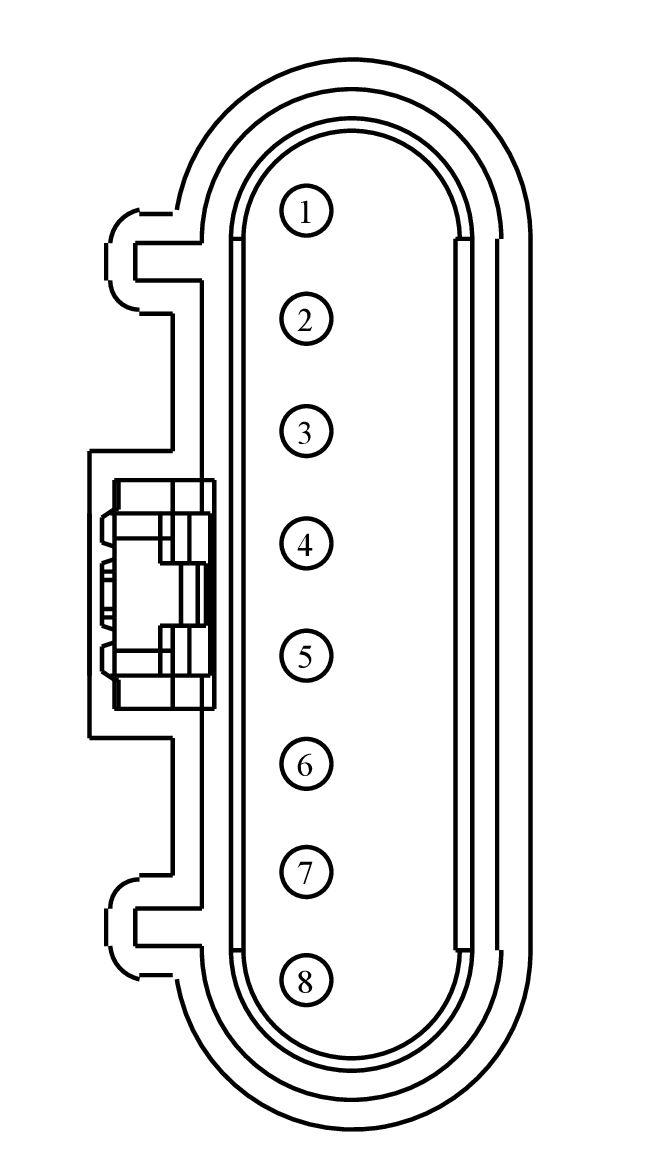

Connector End View (C525) - DRIVER DOOR LATCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C525 | DRIVER DOOR LATCH | BK | 14A584 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | CPL29 (BK) | 20 | SWITCH - LATCH DRIVER # SET | LHD WITHOUT DOOR MODULES | N/A |
| 1 | CPL42 (BK) | 22 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | LHD WITH DOOR MODULES | N/A |
| 1 | CPL51 (BK) | 20 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | RHD WITH DOOR MODULES | N/A |
| 1 | CPL51 (BK) | 16 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | RHD WITHOUT DOOR MODULES | N/A |
| 2 | CPL02 (BK) | 16 | SWITCH - UNLOCK REAR PASSENGER SIDE | RHD WITHOUT DOOR MODULES | N/A |
| 2 | CPL02 (BK) | 20 | SWITCH - UNLOCK REAR PASSENGER SIDE | RHD WITH DOOR MODULES | N/A |
| 2 | CPL28 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER DOORS LOCK (ALL EXCLUDING DRIVER) | LHD WITHOUT DOOR MODULES | N/A |
| 2 | CPL43 (BK) | 22 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | LHD WITH DOOR MODULES | N/A |
| 3 | CPL06 (BK) | 20 | SWITCH - UNLOCK REAR PASSENGER SIDE | RHD WITH DOOR MODULES | N/A |
| 3 | CPL26 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER DOORS LOCK (ALL EXCLUDING DRIVER) | LHD | N/A |
| 3 | CPL06 (BK) | 16 | SWITCH - UNLOCK REAR PASSENGER SIDE | RHD WITHOUT DOOR MODULES | N/A |
| 4 | CPL30 (BK) | 22 | SWITCH - LATCH DRIVER # UNLOCK | LHD WITH DOOR MODULES | N/A |
| 4 | CPL30 (BK) | 20 | SWITCH - LATCH DRIVER # UNLOCK | LHD WITHOUT DOOR MODULES | N/A |
| 4 | RPL63 (BK) | 22 | CTRL MOD. - DOOR LOCK # LATCH DRIVER | RHD WITH DOOR MODULES | N/A |
| 5 | CPL30 (BK) | 20 | SWITCH - LATCH DRIVER # UNLOCK | RHD WITHOUT DOOR MODULES | N/A |
| 5 | RPL63 (BK) | 22 | CTRL MOD. - DOOR LOCK # LATCH DRIVER | RHD WITH DOOR MODULES | N/A |
| 5 | CPL30 (BK) | 22 | SWITCH - LATCH DRIVER # UNLOCK | RHD WITH DOOR MODULES | N/A |
| 6 | CPL06 (BK) | 16 | SWITCH - UNLOCK REAR PASSENGER SIDE | LHD WITH DOOR MODULES | N/A |
| 6 | CPL26 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER DOORS LOCK (ALL EXCLUDING DRIVER) | RHD WITH DOOR MODULES | N/A |
| 7 | CPL02 (BK) | 16 | SWITCH - UNLOCK REAR PASSENGER SIDE | LHD WITHOUT DOOR MODULES | N/A |
| 7 | CPL28 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER DOORS LOCK (ALL EXCLUDING DRIVER) | RHD WITH DOOR MODULES | N/A |
| 7 | CPL43 (BK) | 22 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | LHD WITH DOOR MODULES | N/A |
| 7 | CPL02 (BK) | 20 | SWITCH - UNLOCK REAR PASSENGER SIDE | LHD WITH DOOR MODULES | N/A |
| 8 | CPL29 (BK) | 20 | SWITCH - LATCH DRIVER # SET | LHD WITHOUT DOOR MODULES | N/A |
| 8 | CPL42 (BK) | 22 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | LHD WITH DOOR MODULES | N/A |
| 8 | CPL51 (BK) | 20 | SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) | RHD WITH DOOR MODULES | N/A |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1366
Service Part Number:
3U2Z-14S411-MBB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Liftgate
- Switch - Door Ajar / Interior Lamp
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Sliding Door Contact
