Connector End View (C510) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C510	INLINE	BK	14A58414014	See Below

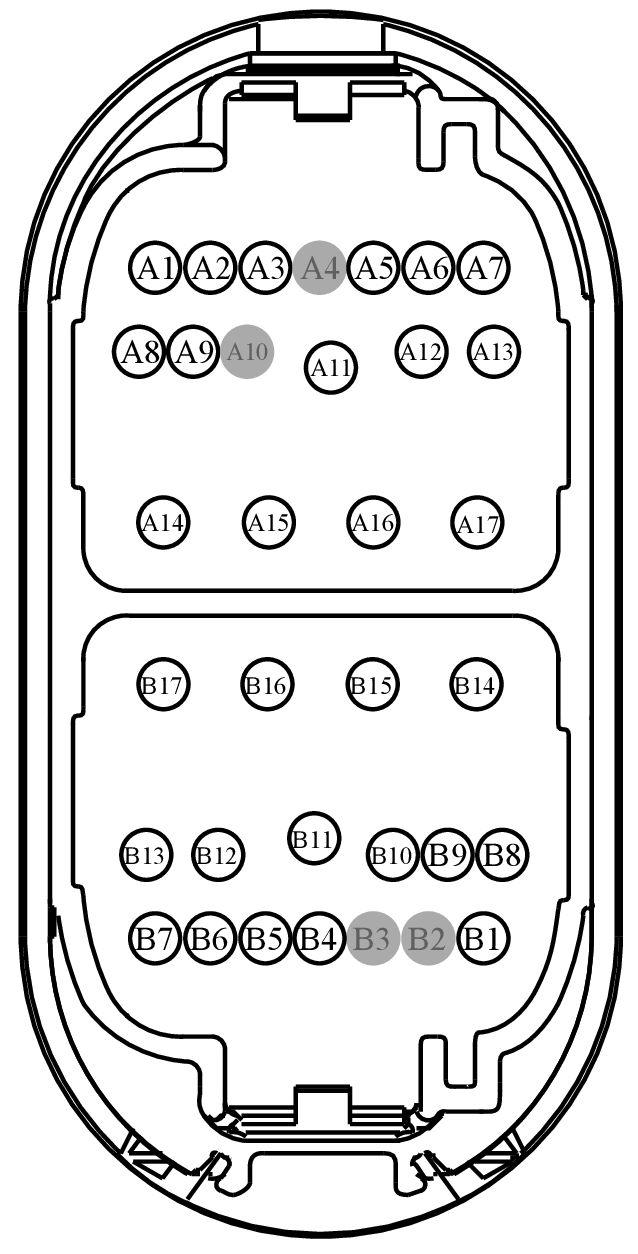

MALE

Harness

14A584

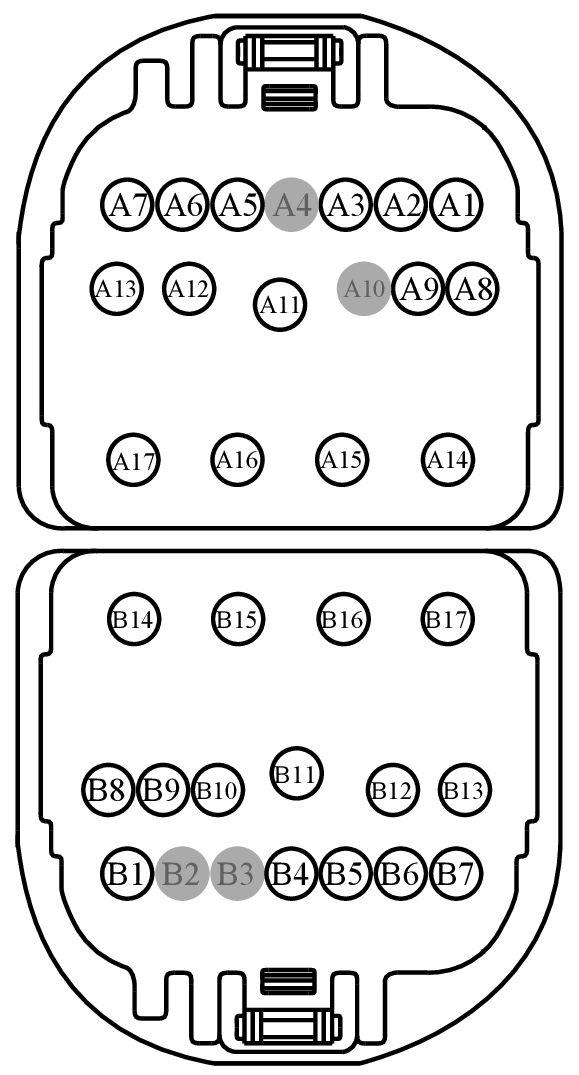

FEMALE

Harness

14014

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
A1	CPM00 (BK)	20	N/A
A1	VDB06 (BK)	18	N/A
A2	CPM00 (BK)	20	N/A
A2	VDB07 (BK)	18	N/A
A3	CBP17 (BK)	20	N/A
A3	CPM00 (BK)	20	N/A
A4	*	*	N/A
A5	CPM00 (BK)	20	N/A
A6	CPL30 (BK)	20	N/A
A7	SBB36 (GN-RD)	20	N/A
A8	CPL28 (BK)	20	N/A
A9	CPL29 (BK)	20	N/A
A10	*	*	N/A
A11	CPW35 (BK)	12	N/A
A12	CPL51 (BK)	16	N/A
A13	CLS22 (GN-BN)	18	N/A
A13	CPM00 (BK)	20	N/A
A14	CPW00 (BK)	12	N/A
A14	SBR01 (BK)	12	N/A
A15	CPW00 (BK)	12	N/A
A15	LPW36 (BK)	12	N/A
A16	CPW00 (BK)	12	N/A
A16	VPW32 (BK)	18	N/A
A16	VPW38 (BK)	12	N/A
A17	CPW15 (BK)	12	N/A
B1	CPL26 (BK)	20	N/A
B2	*	*	N/A
B3	*	*	N/A
B4	RME07 (BK)	18	N/A
B5	VME07 (BK)	18	N/A
B6	CR153 (BK)	20	N/A
B7	RR153 (BK)	20	N/A
B8	CPL43 (BK)	20	N/A
B9	CPL42 (BK)	20	N/A
B10	CLN17 (BK)	20	N/A
B11	RPL63 (BK)	12	N/A
B12	CPL02 (BK)	16	N/A
B13	CPL06 (BK)	16	N/A
B14	CPW16 (BK)	12	N/A
B14	VDB06 (BK)	18	N/A
B15	RPW09 (BK)	12	N/A
B15	VDB07 (BK)	18	N/A
B16	CPW17 (BK)	12	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
A1	CPM00 (BN-GN)	22	N/A
A1	VDB06 (GY-OG)	22	N/A
A2	CPM00 (VT-GN)	22	N/A
A2	VDB07 (VT-OG)	22	N/A
A3	CBP17 (BN-GN)	22	N/A
A3	CPM00 (BK-VT)	22	N/A
A4	*	*	N/A
A5	CPM00 (BN-GN)	22	N/A
A6	CPL30 (GN-VT)	22	N/A
A7	SBB35 (BU-RD)	20	N/A
A8	CPL28 (GY-BN)	22	N/A
A9	CPL29 (YE-GY)	22	N/A
A10	*	*	N/A
A11	CPW35 (GN)	12	N/A
A12	CPL51 (WH-OG)	16	N/A
A13	CLS22 (YE)	16	N/A
A13	CLS26 (YE)	16	N/A
A13	CPM00 (BN-GN)	20	N/A
A14	CPW00 (BN-YE)	12	N/A
A14	SBR01 (RD)	12	N/A
A14	SBR02 (YE-RD)	12	N/A
A14	SBR08 (RD)	12	N/A
A15	CPW00 (BN-GN)	12	N/A
A16	CPW00 (WH-VT)	12	N/A
A16	VPW32 (GY-BU)	22	N/A
A17	CPW15 (YE)	12	N/A
B1	CPL26 (GN-VT)	22	N/A
B2	*	*	N/A
B3	*	*	N/A
B4	RME07 (WH-BN)	18	N/A
B5	VME07 (WH)	18	N/A
B6	CR152 (GY-YE)	20	N/A
B6	CR153 (GN-WH)	20	N/A
B6	RR132 (BU-WH)	20	14014	N/A
B7	RR132 (BU-WH)	20	14014	N/A
B7	RR152 (YE-VT)	20	N/A
B7	RR153 (GY-BU)	20	N/A
B8	CPL43 (VT-GY)	22	N/A
B9	CPL42 (GY-YE)	22	N/A
B10	CLN17 (BN)	22	N/A
B11	GD134 (BK-VT)	12	N/A
B12	CPL02 (GY-BN)	16	N/A
B13	CPL06 (WH-OG)	16	N/A
B14	CPW16 (BU-OG)	12	N/A
B14	VDB06 (GY-OG)	12	N/A
B15	RPW09 (BN-WH)	12	N/A
B15	VDB07 (VT-OG)	22	N/A
B16	CPW17 (BN-GN)	12	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1576

Service Part Number:

KU2Z-14S411-CA

Gauge:

14 16 20

Pin material:

Tin & Tin (greased)

Cavities:

34

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1517

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-PA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

17

Vehicle Uses:

• Connector - Inline
