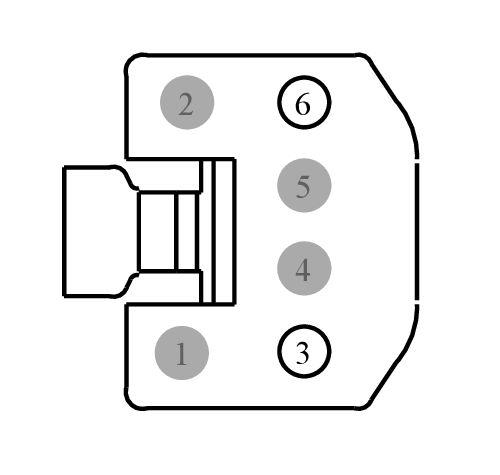

Connector End View (C382) - DRIVER SEAT HEIGHT MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C382	DRIVER SEAT HEIGHT MOTOR	BK	14B723	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	SEA10 (YE-BK)	14	DRIVER SEAT HEIGHT MOTOR -	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	SEA10 (WH-BK)	14	DRIVER SEAT HEIGHT MOTOR +	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1256

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z- 14S411-HA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

6

Vehicle Uses:

• Motor - Power Seat Track
• Motor - Seat Height (Front)
