Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

Connector: Description Color Harness Base Part # Service Pigtail
C310A RESTRAINTS CONTROL MODULE (RCM) BK 14401 part# N/A Not Available

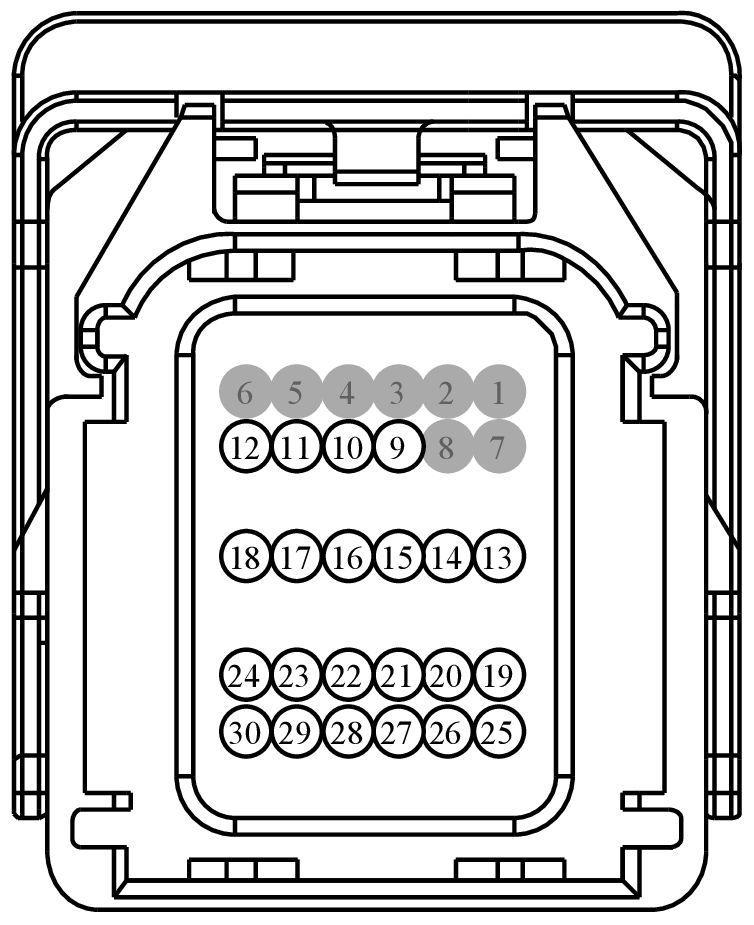

GFDWR19065Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 RR103 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 N/A
10 CR103 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 N/A
11 CR104 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 N/A
12 RR104 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 N/A
13 CR114 (YE-OG) 22 CTRL MOD. - DEPLOY OUTPUT VEMS/TAS N/A
14 RR129 (YE-GY) 22 CTRL MOD. - SENSOR IMPACT FRONT 1ST OR LEFT N/A
15 RRP01 (VT-WH) 20 CTRL MOD. - ELECTROCHROMIC MIRROR N/A
16 VRP01 (WH-GN) 20 SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE N/A
17 VRP01 (WH-GN) 20 SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE N/A
18 RRP01 (VT-WH) 20 CTRL MOD. - ELECTROCHROMIC MIRROR N/A
19 CBP02 (GN) 20 FUSE - 2 OR CIRCUIT BREAKER N/A
20 CR114 (YE-OG) 22 CTRL MOD. - DEPLOY OUTPUT VEMS/TAS N/A
20 CR116 (GN-WH) 22 CTRL MOD. - DEPLOY OUTPUT VEMS/TAS N/A
21 RR102 (WH) 20 CTRL MOD. - AIR BAG DRIVER 2 12-loop single seat N/A
21 RR109 (BU-GN) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD N/A
22 CR102 (BU) 20 CTRL MOD. - AIR BAG DRIVER 2 12-loop single seat N/A
22 CR109 (BN-BU) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD N/A
23 CR104 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 12-loop single seat N/A
23 CR112 (BU-GY) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD N/A
24 RR104 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 12-loop single seat N/A
24 RR112 (GN-OG) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD N/A
25 CR224 (GN) 22 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 3 PASSENGER SIDE OUTBOARD N/A
26 CR225 (YE) 22 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 3 PASSENGER SIDE OUTBOARD N/A
27 RR103 (VT-GN) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 12-loop single seat N/A
27 RR120 (BN-GN) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2 N/A
28 CR103 (GY-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 12-loop single seat N/A
28 CR120 (BU-OG) 20 CTRL MOD. - DEPLOY OUTPUT VEMS/TAS N/A
29 CR101 (VT-BN) 20 CTRL MOD. - AIR BAG DRIVER 1 N/A
30 RR101 (YE-GN) 20 CTRL MOD. - AIR BAG DRIVER 1 N/A
