Floor Console - Vehicles With: Single Passenger Seat: Removal
-
NOTE: On both sides, as both the drivers and passengers side seats will have to be positioned.

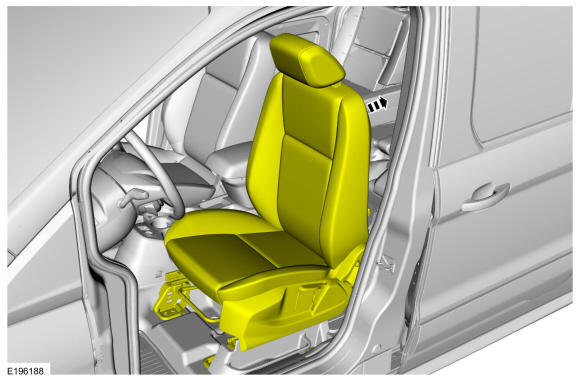

Position the front seat in the full rearward position.
-
NOTE: On both sides, as both the drivers and passengers side seats will have to be positioned.

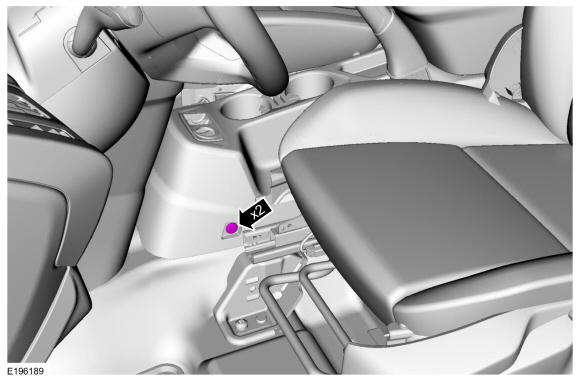

Remove the front console retainers.
Torque: 41 lb.in (4.6 Nm)
-
NOTE: On both sides, as both the drivers and passengers side seats will have to be positioned.
Position the front seat in the full forward position.
-
NOTE: On both sides, as both the drivers and passengers side seats will have to be positioned.

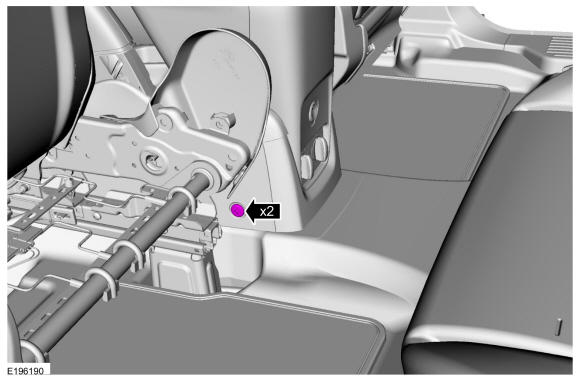

Remove the rear console retainers.
Torque: 41 lb.in (4.6 Nm)

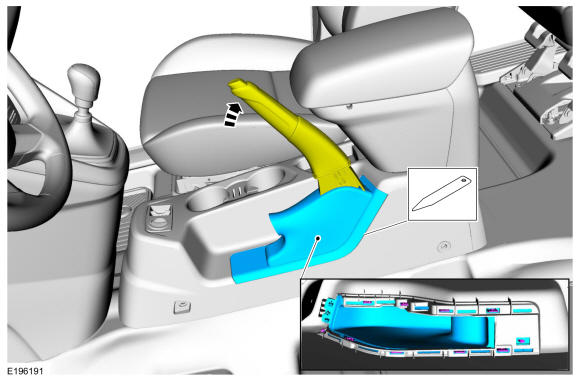

- Position the parking brake lever up then unclip and remove the parking brake boot assembly.
-
NOTE: Cover sides and front of Console to prevent damage from Instrument Panel and seat belts.

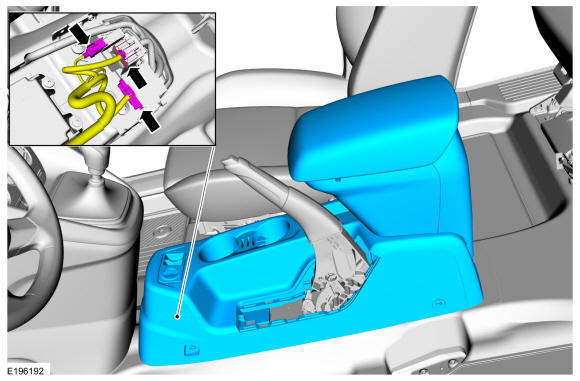

- Raise the front console.
- Disconnect the electrical connectors.
- Remove the Front Console.
