Rear Brake Pads: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove wheel and tire. Refer to: Wheel and Tire .
  2. Remove the brake caliper spring.
    GFD214250Courtesy of FORD MOTOR COMPANY
  3. Remove the caps.
    GFD214244Courtesy of FORD MOTOR COMPANY

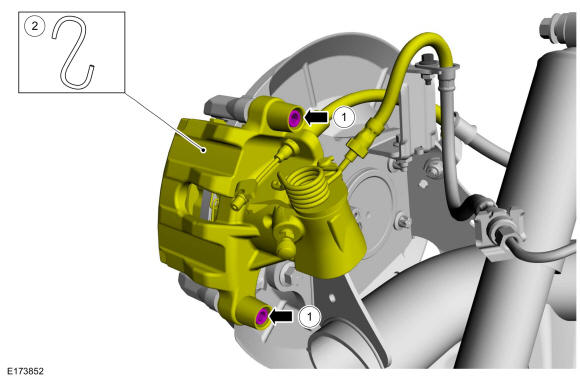

  4. Remove the brake caliper guide pins and position aside the brake caliper.

    Torque: 21 lb.ft (28 Nm)

    GFD214248Courtesy of FORD MOTOR COMPANY
  5. NOTE: Note the position of each component before removal.
    NOTE: Make sure that the mating faces are clean and free of foreign material.

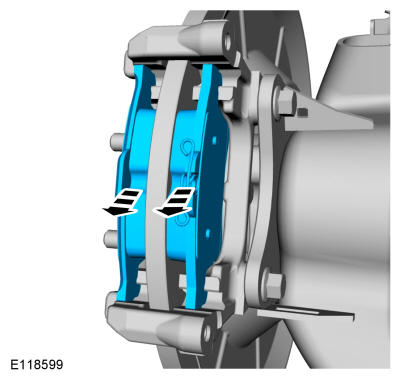

    Remove the brake pads.

    GFD214251Courtesy of FORD MOTOR COMPANY

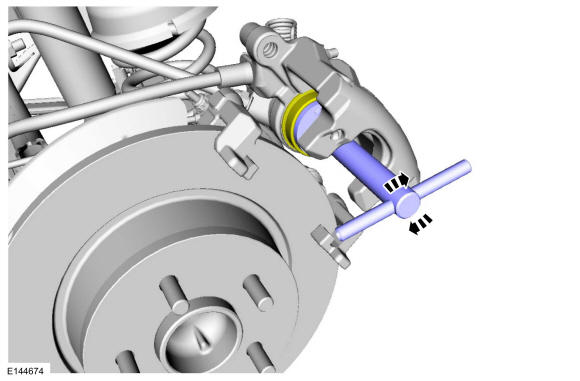

  6. Retract the brake caliper pistons into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor
GFD214252Courtesy of FORD MOTOR COMPANY
