Rear Brake Caliper Anchor Plate: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove wheel and tire. Refer to: Wheel and Tire .
  2. Remove the caps.
    GFD214244Courtesy of FORD MOTOR COMPANY
  3. Remove the brake caliper guide pins and position aside the brake caliper.

    Torque: 21 lb.ft (28 Nm)

    GFD214248Courtesy of FORD MOTOR COMPANY

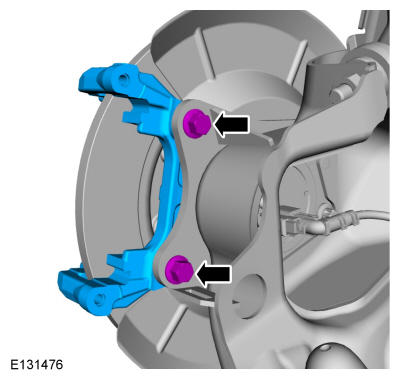

  4. Remove the bolts and the brake caliper anchor plate. Discard the bolts.

    Torque: 81 lb.ft (110 Nm)

GFD214249Courtesy of FORD MOTOR COMPANY
