Front Brake Disc: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

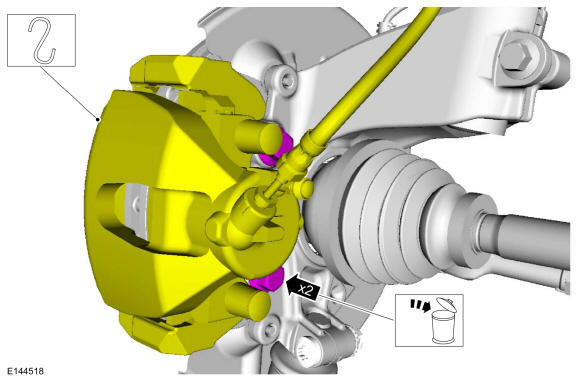

  2. NOTE: Make sure that no load is placed on the brake hose.

    Remove the bolts and position the brake caliper and anchor plate aside.

    Torque: 129 lb.ft (175 Nm)

    GFD214234Courtesy of FORD MOTOR COMPANY

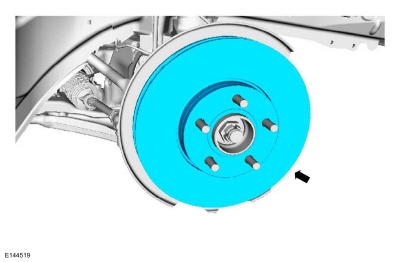

  3. Remove the brake disc.
GFD214235Courtesy of FORD MOTOR COMPANY
