Front Brake Caliper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. Loosen the brake hose fitting and disconnect the brake hose.

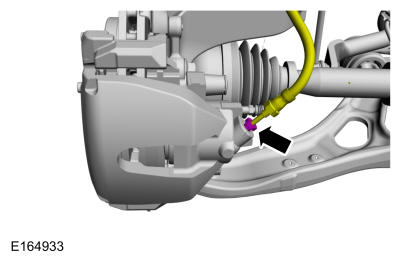

    GFD214225Courtesy of FORD MOTOR COMPANY
  3. Remove the brake caliper spring.
    GFD214226Courtesy of FORD MOTOR COMPANY
    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

    3. Remove the brake caliper.

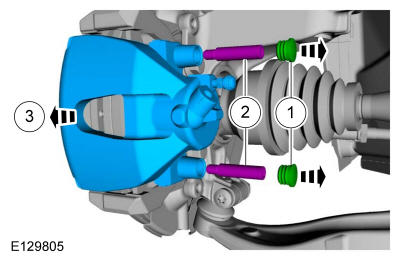

    GFD214227Courtesy of FORD MOTOR COMPANY
  5. Remove the outboard brake pad.
    GFD214228Courtesy of FORD MOTOR COMPANY
  6. Remove the inboard brake pad.
GFD214229Courtesy of FORD MOTOR COMPANY
