Front Brake Caliper: Installation
- To install, reverse the removal procedure.

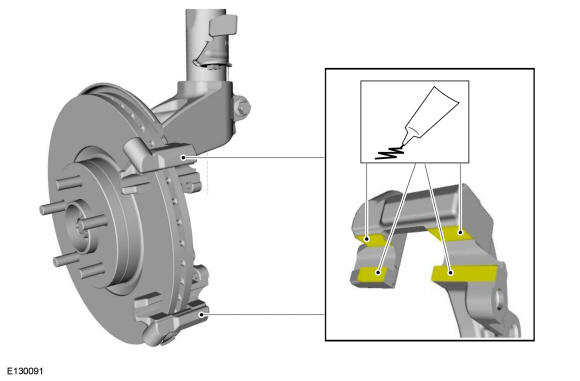

- Apply the specified grease to the brake caliper anchor plate as shown.
Material: Multi-Purpose Grease (WSS-M12A4-A2)
-

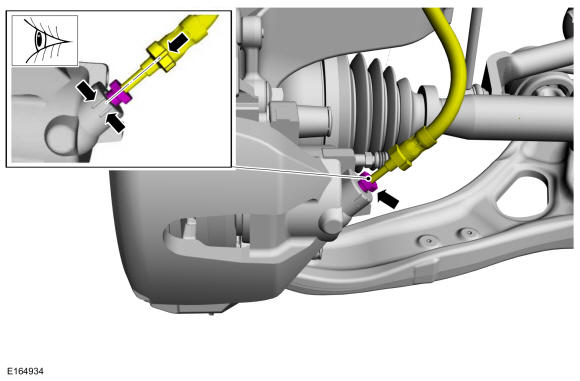

NOTE: Make sure that the brake hose is not twisted and is correctly located.
Tighten the brake flexible hose fitting.
Torque: 159 lb.in (18 Nm)
- Bleed the brake system. Refer to: Brake System Pressure Bleeding .
