Front Door Fixed Window Glass: Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door window glass. Refer to: Front Door Window Glass .
2. Position aside the front door glass top run.

   Courtesy of FORD MOTOR COMPANY

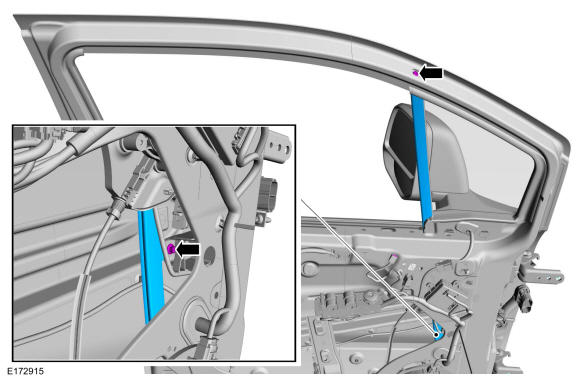

3. Remove the retainers and the fore front door window glass run.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

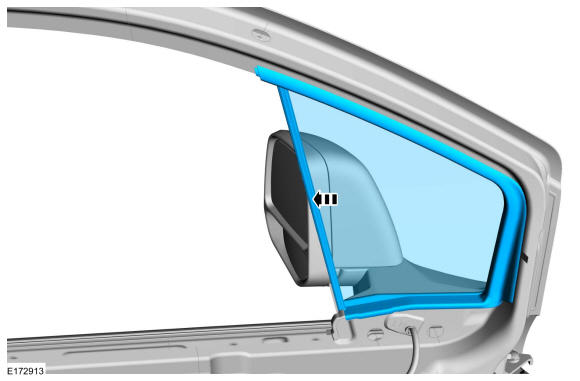

4. Remove the front door fixed window glass.

Courtesy of FORD MOTOR COMPANY
