Second Row Double Seat Head Restraint Guide Sleeve: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Release the locking tabs and remove the head restraints.

   Courtesy of FORD MOTOR COMPANY

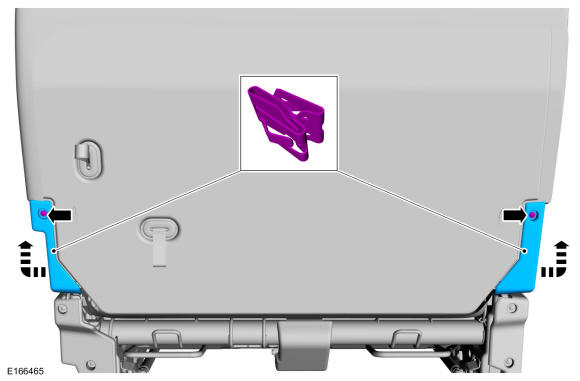

2. Remove the screws, release the clips and remove the seat backrest latch covers.

   Courtesy of FORD MOTOR COMPANY

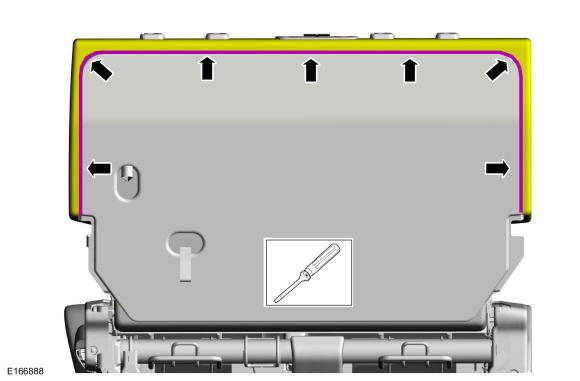

3. Release the J-clips and position the backrest cushion cover away from the seat frame. Use the General Equipment: Flat Headed Screw Driver

   Courtesy of FORD MOTOR COMPANY

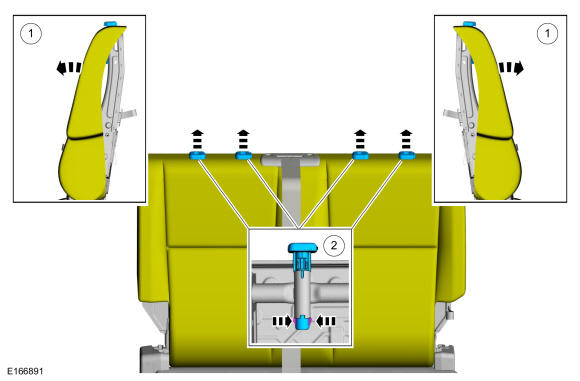

4. 1. Position the backrest cushion cover and foam forward.
   2. Release the locking tabs and remove the headrest restraint guide sleeves.

Courtesy of FORD MOTOR COMPANY
