Front Bumper Cover: Assembly

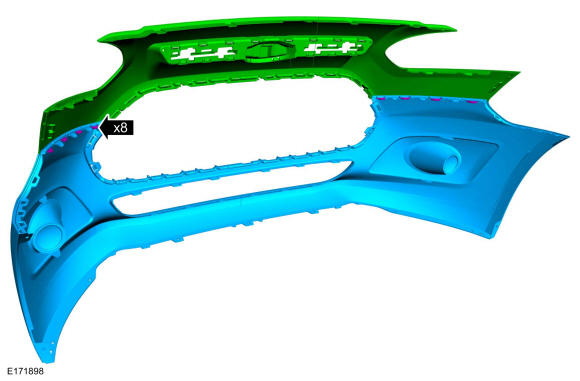

- Install the lower bumper cover.
- Install the front bumper cover trim.

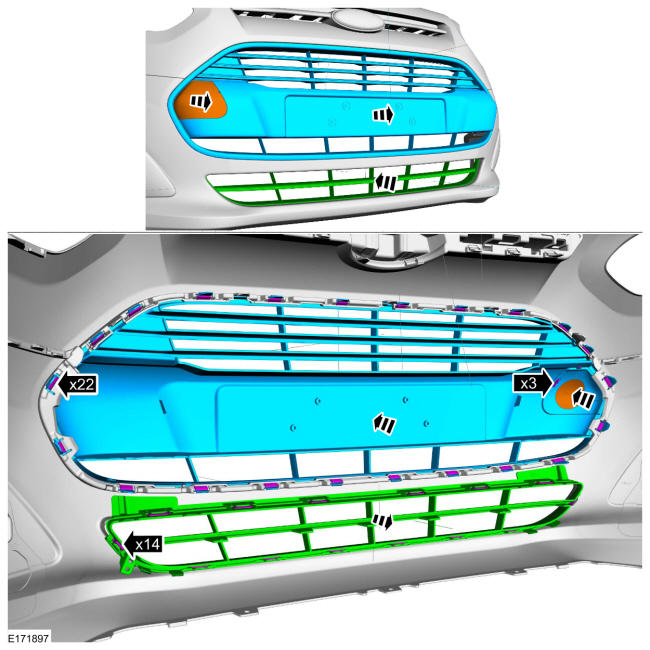

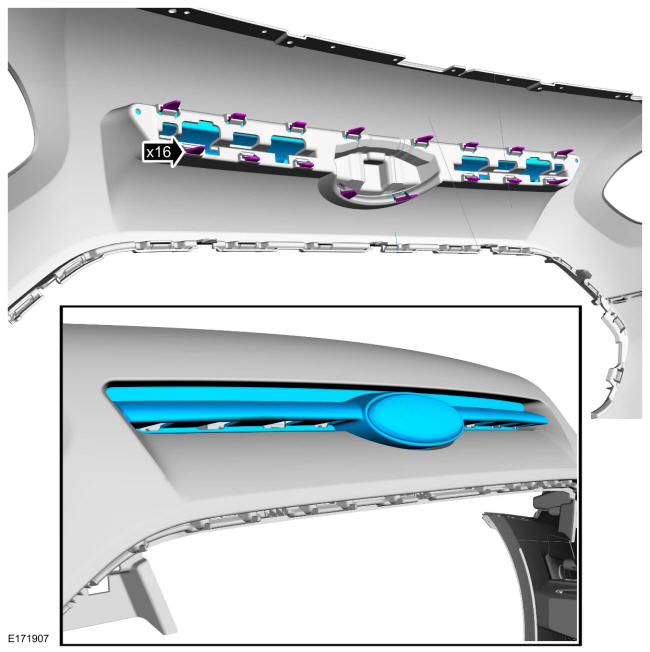

- Install the lower radiator grille, the upper radiator grille and the front tow hook cover.

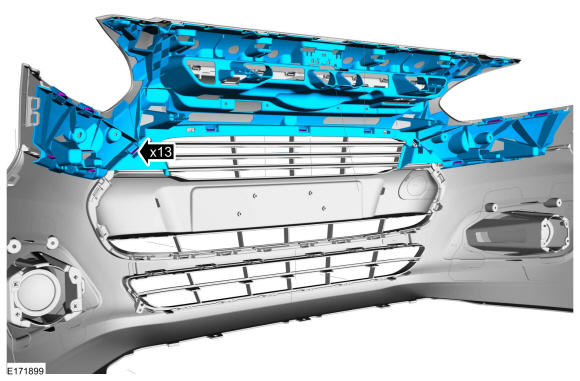

- Install the bumper reinforcement.

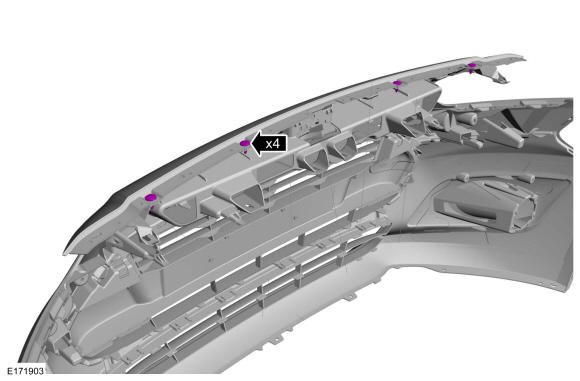

- Install the push pins. Use the General Equipment: Interior Trim Remover

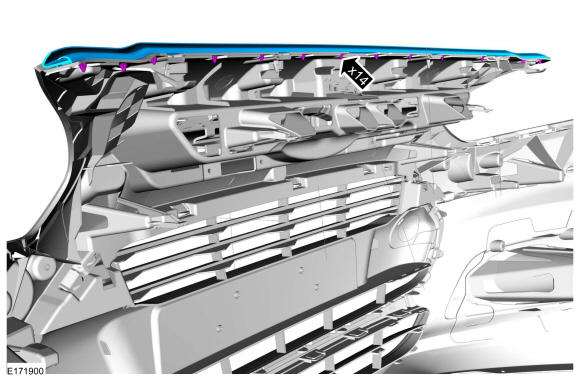

- Install the hood seal.
Vehicles with front parking aid
-
NOTE: Take extra care not to scratch the bumper cover.NOTE: Cutlines already exist on the inner surface of a new bumper cover.

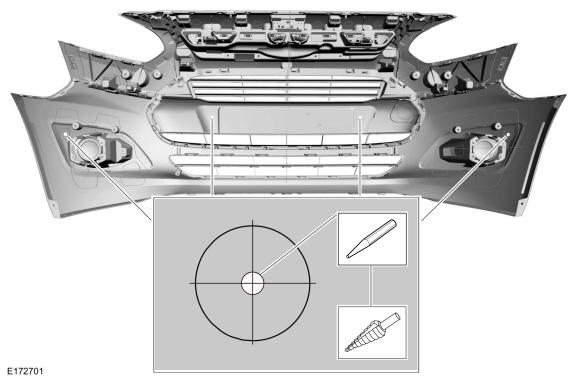

- Using a suitable center punch and hammer, mark the center of the parking aid sensor location holes.
- Using a suitable electric hand drill and a step drill, cut the bumper cover within the indicated area. Use the General Equipment: Electric Drill Use the General Equipment: Step Drill

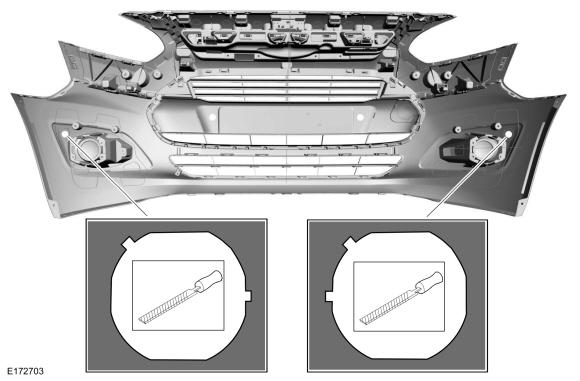

- Using a suitable flat file (no more than 2mm wide), cut the parking aid sensor housing location grooves in the bumper cover as shown. Use the General Equipment: Flat File
- Using a suitable flat file (no more than 2mm wide), cut the parking aid sensor housing location grooves in the bumper cover as shown. Use the General Equipment: Flat File
-
NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

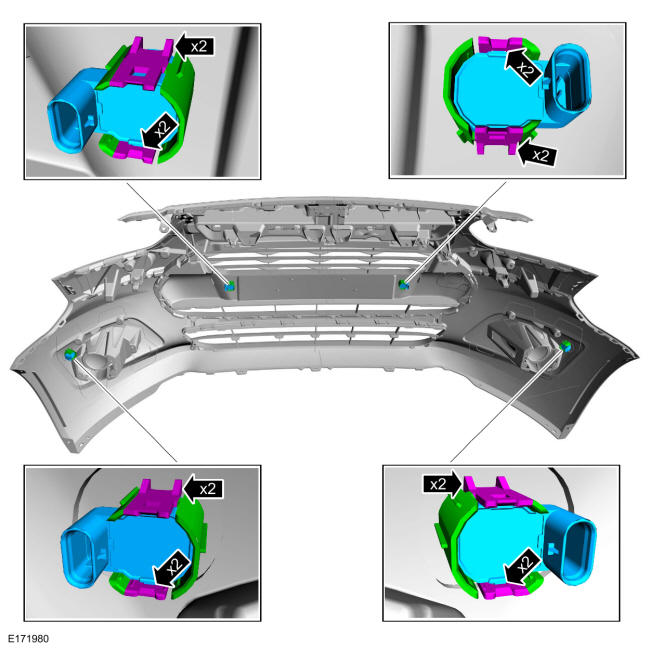

Install the front parking aid sensors.
Vehicles with front fog lamps

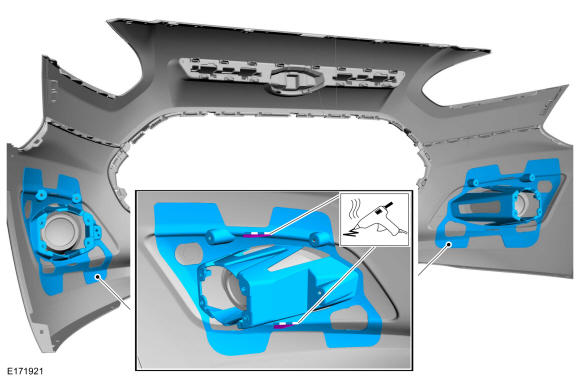

- Install the front fog lamp mounting assembly. Use the General Equipment: Hot Glue Gun

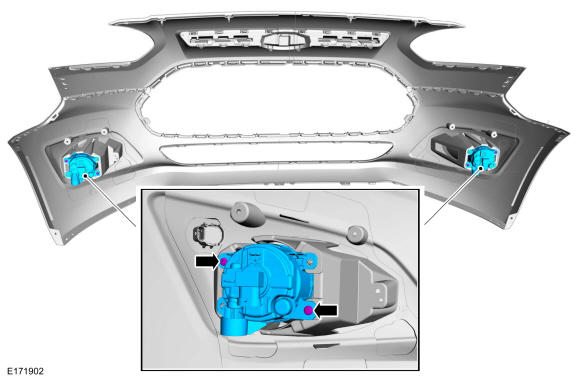

- Install the front fog lamps and tighten the screws.
All vehicles
- If equipped.
- Install the front fog lamp electrical connectors.
- Install the front parking aid electrical connectors.

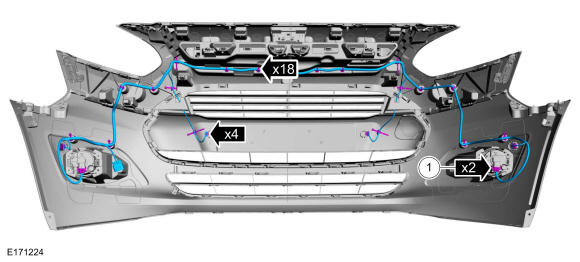

- Install the electrical wire harness and attach the retainers.
- Install the front bumper cover. Refer to: Front Bumper Cover .
