Liftgate Release Switch: Removal

  1. Remove the liftgate release handle. Refer to: Liftgate Release Handle .
  2. Remove the liftgate release switch.

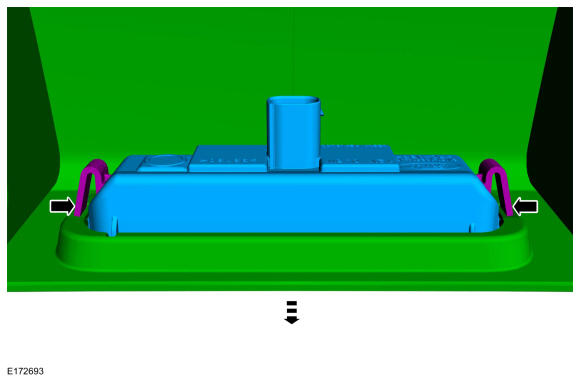

    • Release the retaining tabs.

    • Remove the liftgate release switch.

GFD216670Courtesy of FORD MOTOR COMPANY
