Ignition Lock Cylinder: Disassembly

  1. Refer to: Ignition Lock Cylinder .

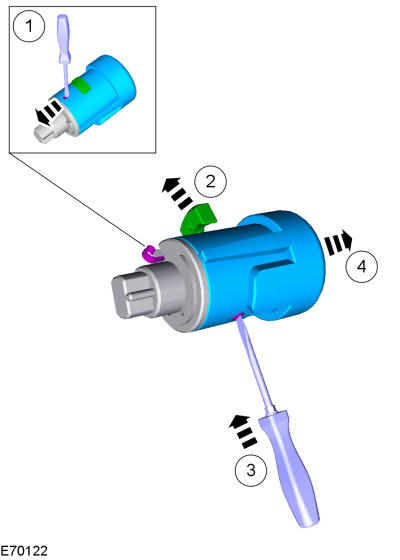

  2. GFD216690Courtesy of FORD MOTOR COMPANY
  3. GFD216691Courtesy of FORD MOTOR COMPANY
  4. GFD216692Courtesy of FORD MOTOR COMPANY
  5. GFD216693Courtesy of FORD MOTOR COMPANY
  6. NOTE: Note the position of the components before removal.

    1. Make sure to read the key code from the key entry to the end of the lock barrel in sequence.
    2. Make a note of the position and orientation of the ignition lock cylinder barrel tumblers.
    3. One group of tumblers is signed with a one digit number (1 to 5), the other group of tumblers is signed with a two digit number (11 to 15).

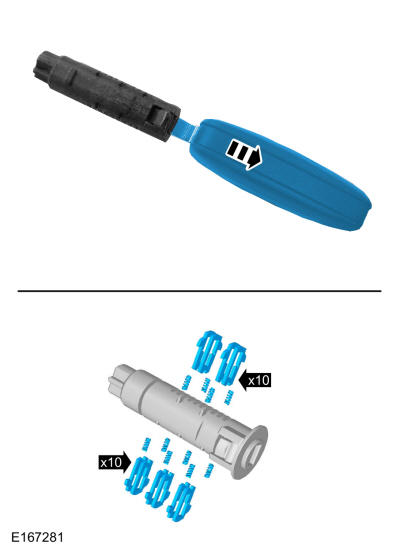

GFD216694Courtesy of FORD MOTOR COMPANY
