Ignition Lock Cylinder: Assembly

  1. NOTE: Make sure that the components are installed to the position noted before removal.

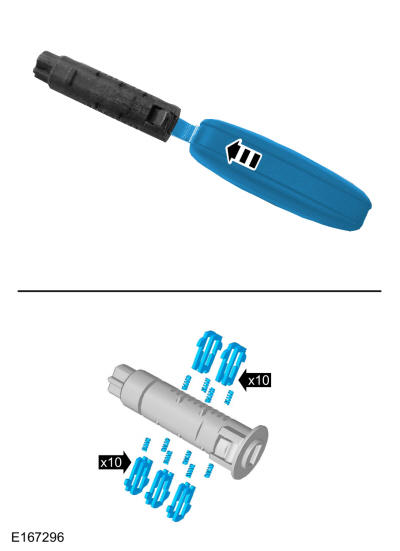

    GFD216695Courtesy of FORD MOTOR COMPANY
  2. GFD216693Courtesy of FORD MOTOR COMPANY

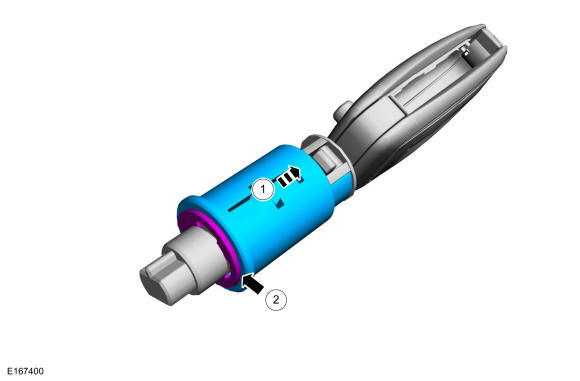

  3. GFD216696Courtesy of FORD MOTOR COMPANY
  4. GFD216697Courtesy of FORD MOTOR COMPANY

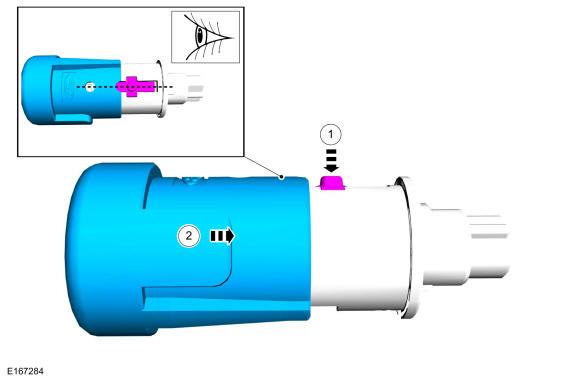

  5. GFD216698Courtesy of FORD MOTOR COMPANY

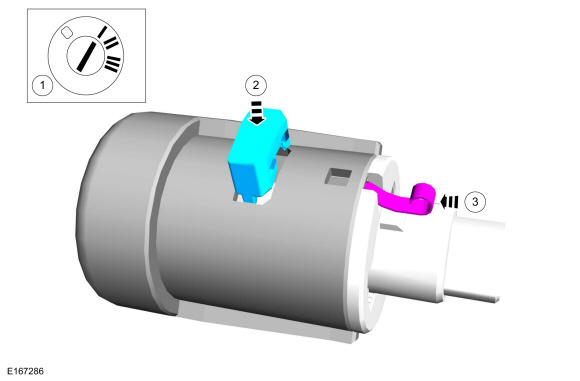

  6. GFD216699Courtesy of FORD MOTOR COMPANY
  7. Refer to: Ignition Lock Cylinder .
