Windshield Wiper Pivot Arm: Removal

NOTE: LH side shown, RH side similar.

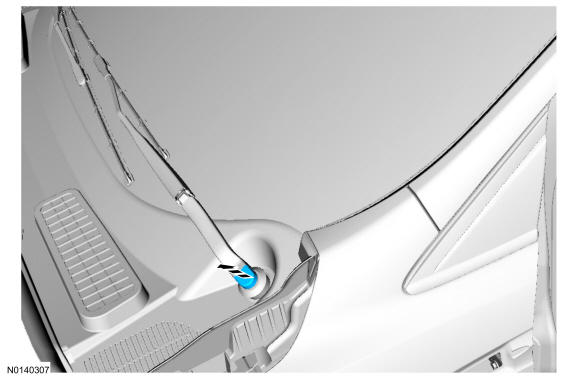

  1. Remove windshield wiper pivot arm nut cover.
    GFD216728Courtesy of FORD MOTOR COMPANY

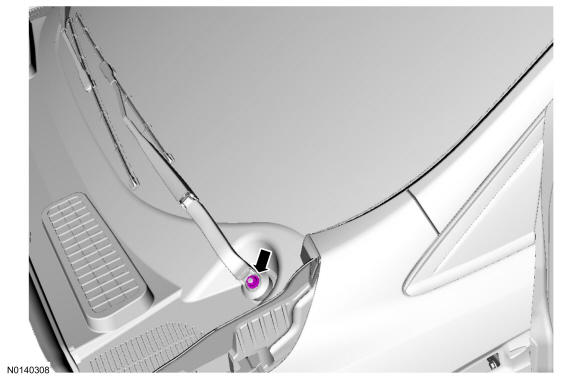

  2. Remove windshield wiper pivot arm nut.
    GFD216729Courtesy of FORD MOTOR COMPANY

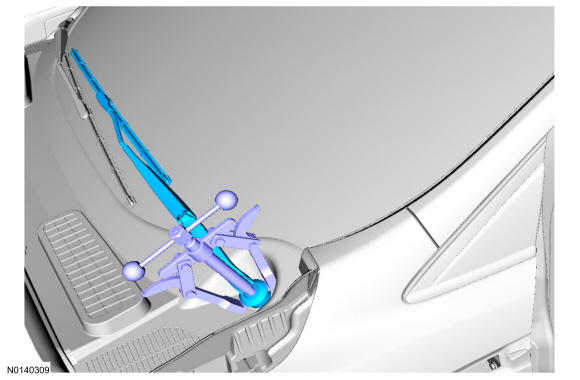

  3. Remove the wiper pivot arm. Use the General Equipment: Two Leg Puller
GFD216730Courtesy of FORD MOTOR COMPANY
