Windshield Washer Reservoir: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Lubricate the grommet before installing the filler neck.

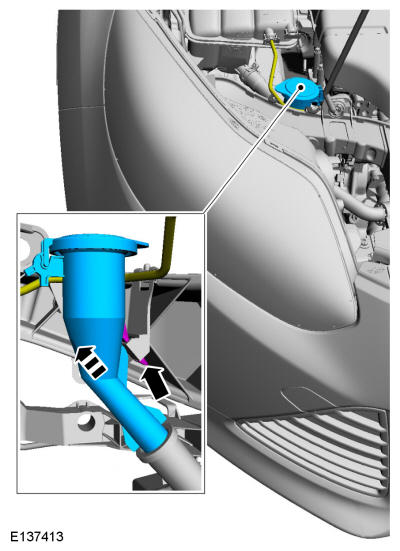

Remove the filler neck.

Courtesy of FORD MOTOR COMPANY
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the underbody shield.
- If equipped. Remove the retainers and the shield plate.
- If equipped. Remove the retainers and the underbody shield.
Courtesy of FORD MOTOR COMPANY
Remove the retainers, the bolts and the radiator undershield.

Courtesy of FORD MOTOR COMPANY

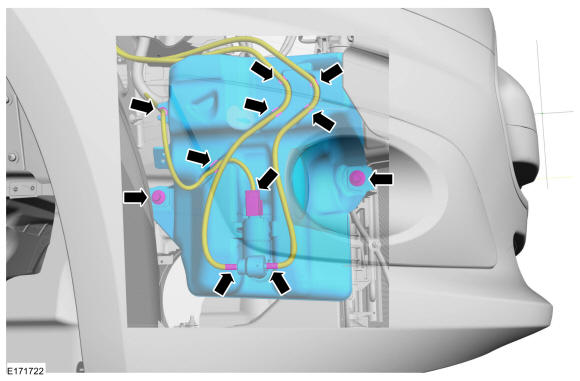

Remove the windshield washer reservoir.
- Disconnect the electrical connector.
- Detatch the hoses.
- Remove the mounting bolts and the windshield washer reservoir.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: Lubricate the grommet before installing the washer pump.

Remove the washer pump.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the washer pump grommet.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the filler neck grommet.

Courtesy of FORD MOTOR COMPANY
