Blind Spot Information System - Component Location
Blind Spot Information System - Component Location

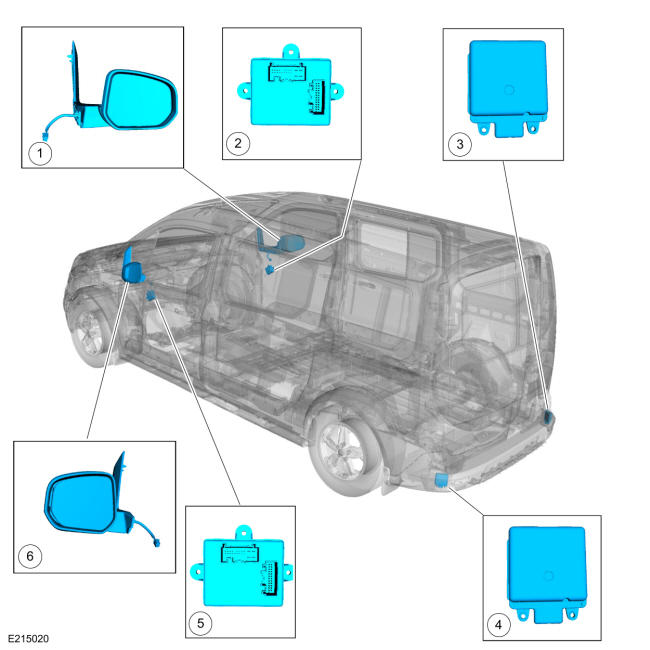

Component Location - BLIS ®/CTA
Courtesy of FORD MOTOR COMPANY
Item
Description
1
RH exterior mirror
2
PDM
3
SODR
4
SODL
5
DDM
6
LH exterior mirror
Courtesy of FORD MOTOR COMPANY
