Steering Column Multifunction Switch RH: Removal

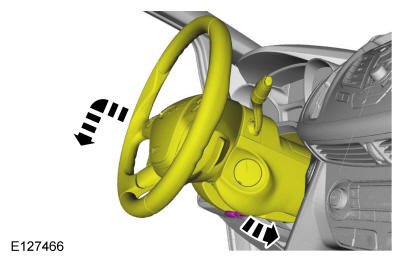

1. Position the steering column in the full forward/down position.

   Courtesy of FORD MOTOR COMPANY

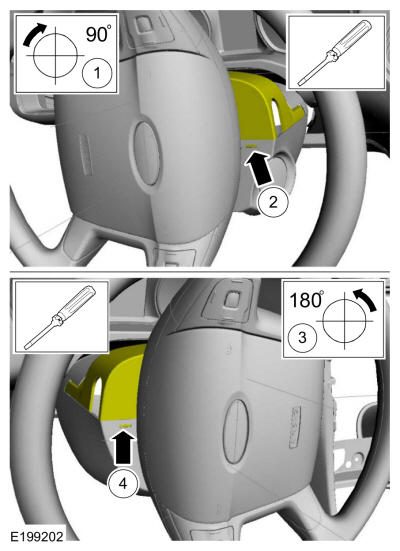

2. 1. Rotate the steering wheel 90 degrees to the right.
   2. Release the RH retainer. Use the General Equipment: Flat Headed Screw Driver
   3. Rotate the steering wheel 180 degrees to the left.
   4. Release the LH retainer. Use the General Equipment: Flat Headed Screw Driver

   Courtesy of FORD MOTOR COMPANY

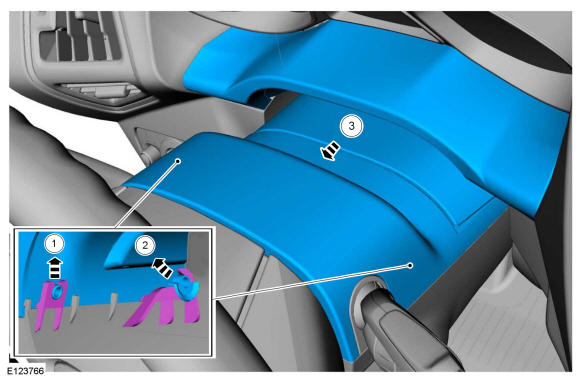

3. 1. Release the front clip.
   2. Rotate and detach the rear clip.
   3. Slide the upper steering column shroud forward and remove.

   Courtesy of FORD MOTOR COMPANY

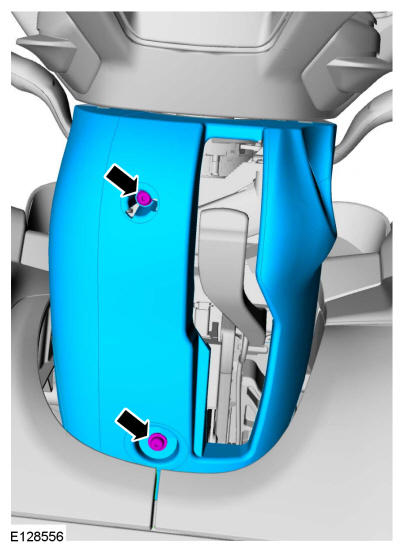

4. Remove the retainers and the lower steering column shroud.

   Courtesy of FORD MOTOR COMPANY

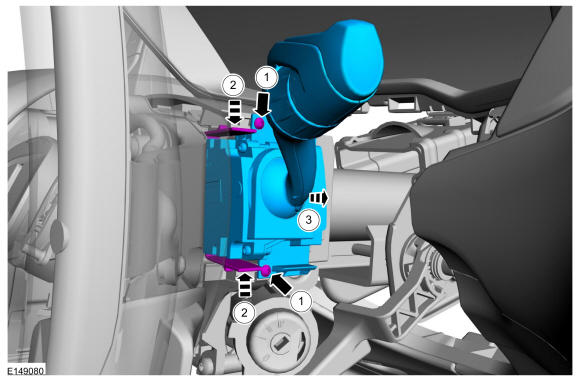

5. 1. Remove the retainers.

      Torque: 9 lb.in (1 Nm)

   2. Release the tabs.
   3. Remove the RH steering column multifunction switch.

Courtesy of FORD MOTOR COMPANY
