Steering Column Multifunction Switch LH: Removal

  1. Position the steering column in the full forward/down position.
    GFD214333Courtesy of FORD MOTOR COMPANY

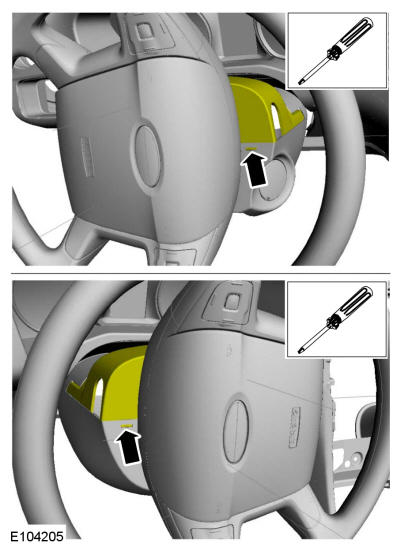

  2. Rotate the steering wheel and release the retainers. Use the General Equipment: Flat Headed Screw Driver
    GFD214342Courtesy of FORD MOTOR COMPANY

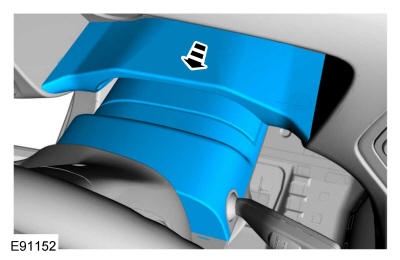

  3. Slide the upper steering column shroud forward and remove.
    GFD214344Courtesy of FORD MOTOR COMPANY
  4. Remove the retainers and the lower steering column shroud.
    GFD214336Courtesy of FORD MOTOR COMPANY

    Vehicles with lane departure warning

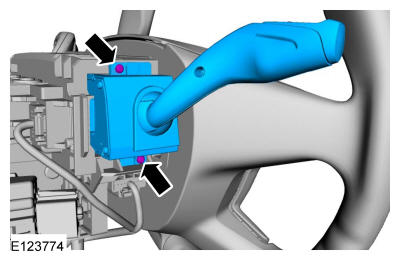

  5. NOTE: Make sure that the component terminals are not bent or damaged.

    Remove the retainers and the LH steering column multifunction switch

    GFD214345Courtesy of FORD MOTOR COMPANY

    Vehicles without lane departure warning

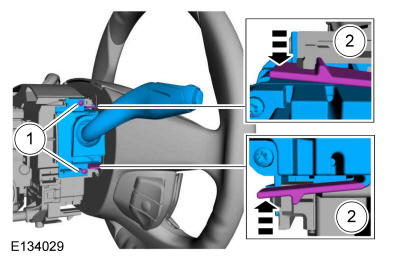

  6. NOTE: Make sure that the component terminals are not bent or damaged.

    1. Remove the retainers.
    2. Release the tabs and the LH steering column multifunction switch.

GFD214346Courtesy of FORD MOTOR COMPANY
