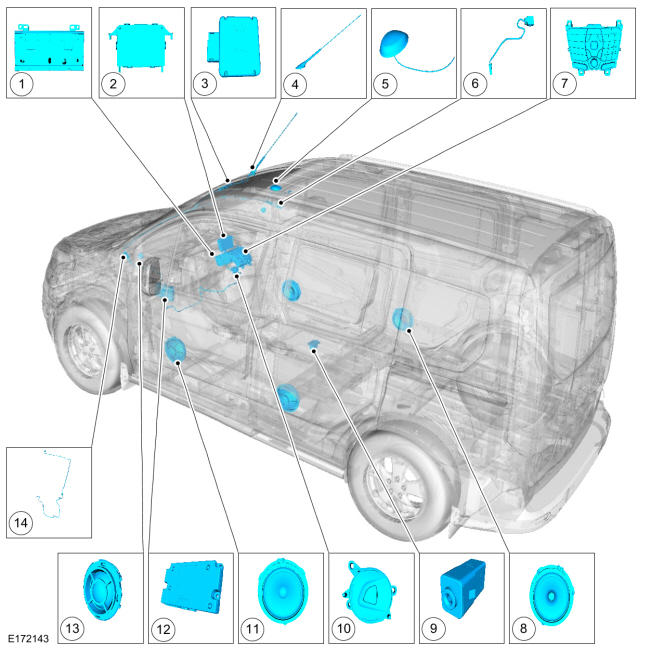

Information and Entertainment System - Component Location
| Item | Description |
|---|---|
| 1 | ACM |
| 2 | 4.2-inch (107 mm) FCDIM |
| 3 | GPSM |
| 4 | AM/ FM/HD Radio ® (if equipped) antenna |
| 5 | Satellite radio (if equipped) antenna |
| 6 | SYNC ® Microphone (located in the headliner) |
| 7 | FCIM |
| 8 | Right Rear (RR) door speaker (Left Rear (LR) also shown) |
| 9 | Audio input jack |
| 10 | RH steering wheel switches |
| 11 | Left Front (LF) door woofer speaker (Right Front (RF) also shown) |
| 12 | APIM |
| 13 | LH instrument panel tweeter speaker (RH side also shown) Comments: Wagon models only |
| 14 | AM/ FM/HD Radio ® (if equipped) antenna coaxial cable |
| - | Satellite radio (if equipped) antenna coaxial cable (not shown) Comments: Part of the 14401 harness |
| - | USB cable (not shown) Comments: Part of the 14401 harness |
