Information And Entertainment System - General Information - Vehicles With: Am/Fm/Cd/Sync/Touchscreen Display
>>
Description And Operation
>>

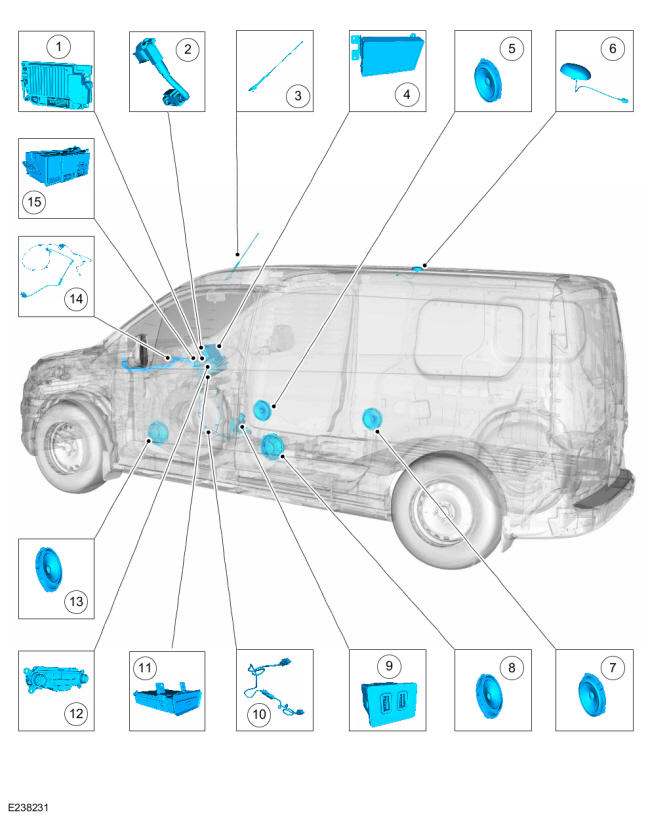

Information and Entertainment System - Component Location
Information and Entertainment System - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
APIM
2
APIM to FDIM cable
3
Audio unit antenna
4
FDIM
5
Door speaker RHF
6
Satellite radio antenna
7
Door speaker RHR
8
Door speaker LHR
9
USB hub
10
APIM to USB port cable
11
CD player
12
FCIM
13
Door speaker LHF
14
Audio unit antenna splitter cable
15
ACM
