Parking Assist Control Module (PAM) - Long Wheelbase: Removal

  1. Remove the RH load space trim panel. Refer to: Loadspace Trim Panel RH - Long Wheelbase .

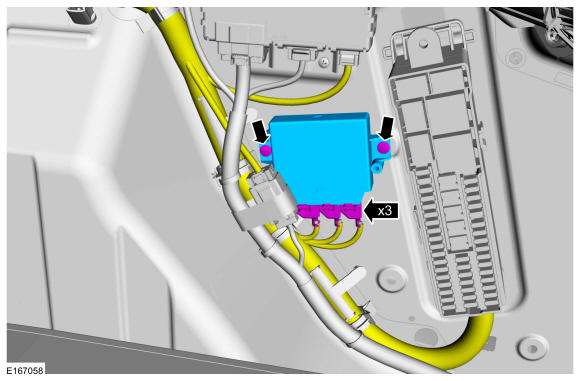

    • Disconnect the PAM electrical connectors.

    • Remove the screws and the PAM.

GFD215839Courtesy of FORD MOTOR COMPANY
