Connector End View (C961B) - INTERIOR LAMP, CENTER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C961B | INTERIOR LAMP, CENTER | NA | 14358 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLN27 (WH-BN) | 20 | SWITCH - VANITY MIRROR ILLUM. RIGHT | N/A | ||||
Available Pigtail Kits

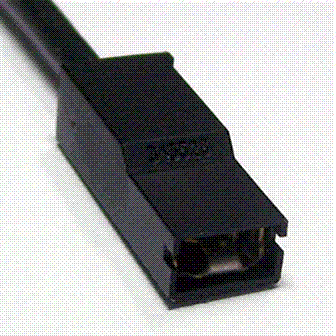

Pigtail Kit Part Number WPT-1017
Service Part Number:
3U2Z-14S411-NYB
Gauge:
14
Pin material:
Tin
Cavities:
1
Vehicle Uses:
- Horn
- Lamp - Courtesy - Reading (Rear)
- Lamp - Dome
- Lamp - Storage Compartment - Cargo
- Terminal - Rear Window Defroster Grid

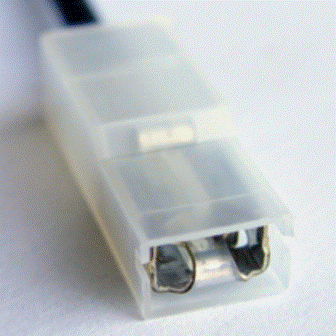

Pigtail Kit Part Number WPT-461
Service Part Number:
3U2Z-14S411-NYA
Gauge:
12
Pin material:
Tin
Cavities:
1
Vehicle Uses:
- Lamp - Courtesy - Reading (Rear)
