Connector End View (C929B) - INTERIOR LAMP, FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C929B	INTERIOR LAMP, FRONT	BK	14335	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
94BG-14474-ZCA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN27 (WH-BN)	20	CTRL MOD. - DIMMER INSTRUMENT	94BG-14474-ZCA
2	GD339 (BK-YE)	20	GROUND	94BG-14474-ZCA

Available Pigtail Kits

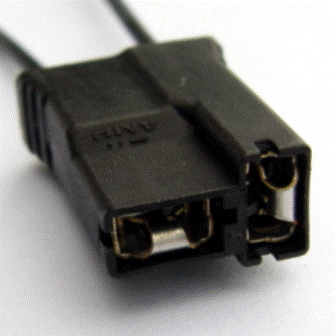

Pigtail Kit Part Number WPT-719

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EPAA

Gauge:

18

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Instrument Cluster
• Lamp - Park/Turn/Stop/Reverse - Inline (Male)
• Lamp - PRNDL Indicator

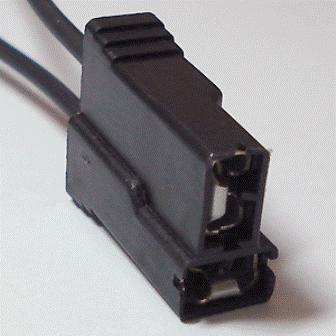

Pigtail Kit Part Number WPT-969

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EPAB

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Lamp - Courtesy - Reading (Rear)
• Lamp - Dome
• Lamp - License
• Lamp - Storage Compartment - Trunk
• Speaker - Door (front)
