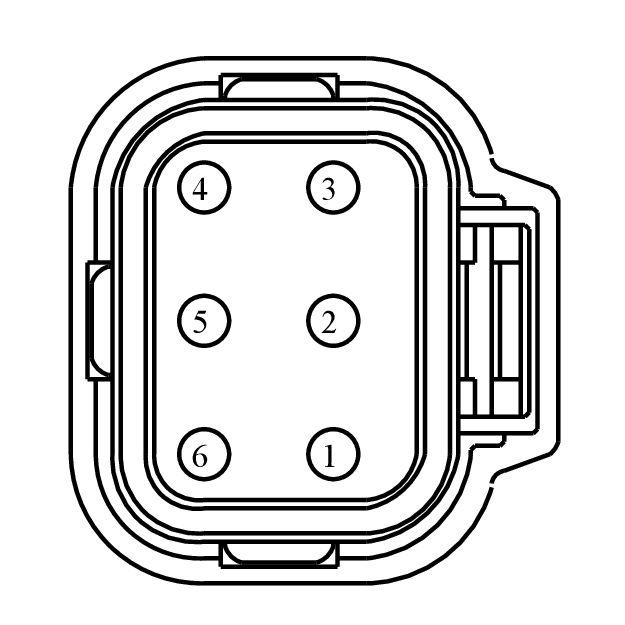

Connector End View (C1160) - ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1160	ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY	DK GY	12C508	9D475	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+)	N/A
2	CBK02 (GN)	18	FUSE OR CIRCUIT BREAKER	N/A
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-)	N/A
4	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC)	N/A
5	CBK02 (GN)	18	FUSE OR CIRCUIT BREAKER	N/A
6	CE104 (GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC)	N/A

Available Pigtail Kits

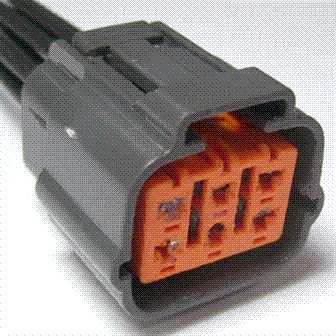

Pigtail Kit Part Number WPT-1115

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BGAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

6

Vehicle Uses:

• Sensor - EGR Valve Position
• Valve - EGR
