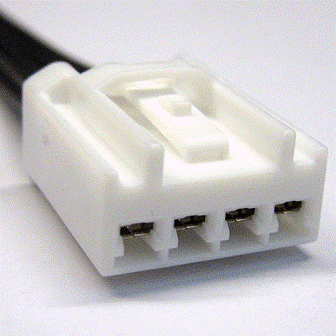

Connector End View (C628) - FRONT DOOR SPEAKER RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C628	FRONT DOOR SPEAKER RH	NA	14K138	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME10 (BK)	18	TACHOGRAPH - PULSE (PULSE PER METRE)	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RME10 (BK)	18	TACHOGRAPH - SENSOR TACHOGRAPH	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-912

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-HA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Sensor - Oil Temperature
• Sensor - Power Steering Pressure
• Sensor - Purge Flow
• Switch - Gear Shift Select/Neutral Safety
