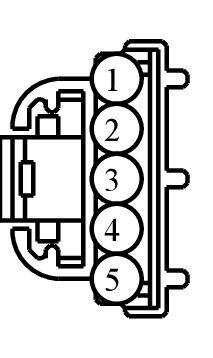

Connector End View (C9039) - REAR VIEW CAMERA DISPLAY MIRROR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9039	REAR VIEW CAMERA DISPLAY MIRROR	BK	17K745	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP04 (VT)	22	FUSE - 4 OR CIRCUIT BREAKER	N/A
2	RRD12 (BN)	22	CTRL MOD. - ELECTROCHROMIC MIRROR	N/A
3	GD338 (BK-WH)	20	GROUND - TUNNEL # 2ND STUD	N/A
4	VMP31 (BU)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
5	RMP31 (GN)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	N/A

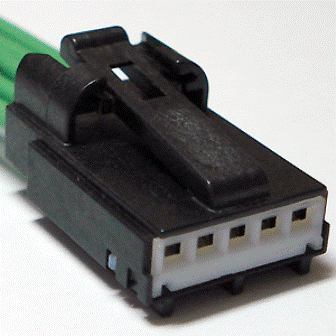

Available Pigtail Kits

Pigtail Kit Part Number WPT-983

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-SB

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Module - Heads Up Display
• Switch - Overdrive Cancel
• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
