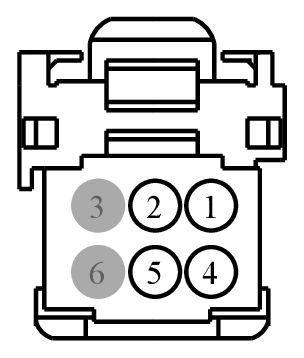

Connector End View (C3811) - PASSENGER HEATED SEAT SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3811	PASSENGER HEATED SEAT SWITCH	GY	15K857	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
2	GD133 (BK)	22	GROUND - PILLAR A LEFT	N/A
3	*	*	Not Used	N/A
4	CBP04 (YE)	20	FUSE - 4 OR CIRCUIT BREAKER	N/A
5	CHS32 (BN)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW	N/A
6	*	*	Not Used	N/A

Available Pigtail Kits

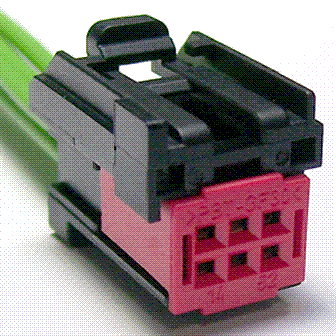

Pigtail Kit Part Number WPT-1207

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-ABC

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Courtesy Lamp - Liftgate
• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Heater A/C Temp Control
• Switch - Message Center
• Switch - Power Liftgate
