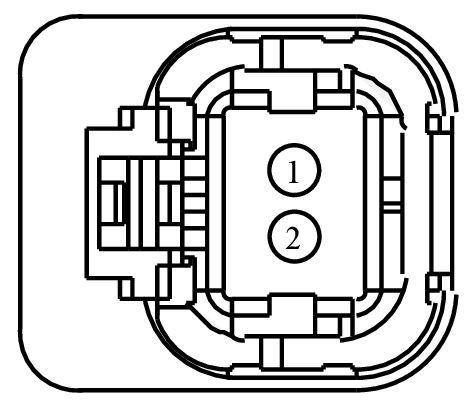

Connector End View (C1748) - VARIABLE OIL PUMP
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1748 | VARIABLE OIL PUMP | BK | 12A690 | 14A464 | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB33 (WH-BN) | 18 | FUSE - 33 OR CIRCUIT BREAKER | N/A | ||||
| 2 | CE358 (GY-YE) | 18 | CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL | N/A | ||||
