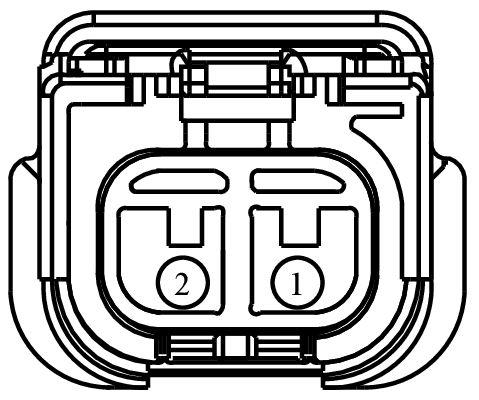

Connector End View (C1601) - IGNITION COIL-ON-PLUG 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1601	IGNITION COIL-ON-PLUG 1	BK	12C508	12A366	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP1A)	N/A
2	CBK04 (VT)	18	FUSE OR CIRCUIT BREAKER	N/A

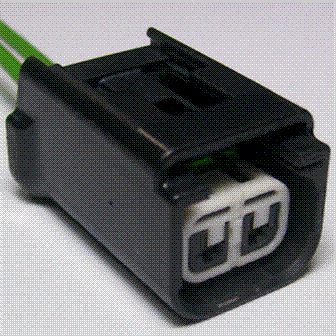

Available Pigtail Kits

Pigtail Kit Part Number WPT-1133

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-FA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Coil - Ignition
