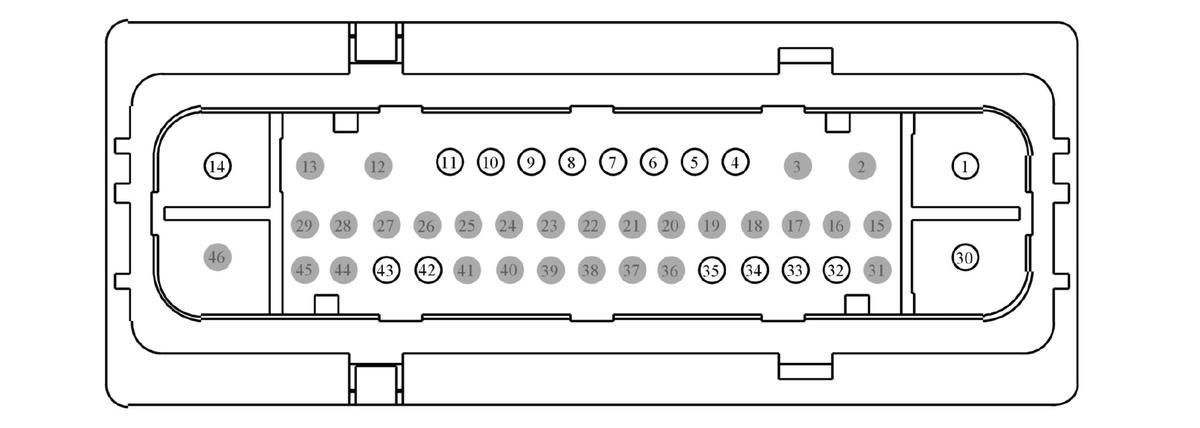

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C135	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	BK	14K733	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB26 (YE-RD)	10	FUSE - 26 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RCA19 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	N/A
5	VCA05 (VT)	20	SOUNDER - BATTERY BACKUP	N/A
6	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	N/A
7	VCA04 (BU-OG)	20	SOUNDER - BATTERY BACKUP	N/A
8	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	N/A
9	VCA03 (VT)	20	SOUNDER - BATTERY BACKUP	N/A
10	RCA20 (BN)	20	CTRL MOD. - SENSOR YAW	N/A
11	VCA06 (WH-OG)	20	SOUNDER - BATTERY BACKUP	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	GD122 (BK)	10	GROUND - CROSS CAR BEAM # 3RD STUD	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	SBB25 (RD)	12	FUSE - 25 OR CIRCUIT BREAKER	N/A
31	*	*	Not Used	N/A
32	VCA23 (BU-WH)	20	SOUNDER - BATTERY BACKUP	N/A
33	VCA24 (GN-OG)	20	CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW	N/A
34	CCA58 (YE-GN)	22	SWITCH - IVD/TCS DISABLE	FNA	N/A
35	CBP03 (GY)	20	FUSE - 3 OR CIRCUIT BREAKER	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
43	VDB05 (WH)	20	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
