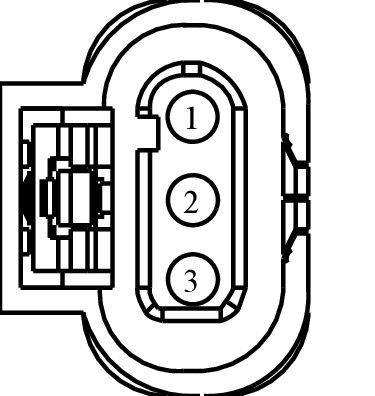

Connector End View (C113) - IGNITION COIL-ON-PLUG 3

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C113	IGNITION COIL-ON-PLUG 3	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7V6T-14474-EA	Not Available
7V6T-14474-FA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE305 (BU-OG)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)	7V6T-14474-EA
2	GD145 (BK-GN)	16	GROUND - PILLAR B RIGHT	1.0L	7V6T-14474-FA
2	GD110 ((BK-VT)	16	GROUND - COMBINED REAR LAMP RIGHT	1.6L GTDI	N/A
3	CBB35 (YE-GY)	16	FUSE - 35 OR CIRCUIT BREAKER	1.6L GTDI	N/A
3	CBB50 (GN)	16	FUSE - 50 OR CIRCUIT BREAKER	1.0L	7V6T-14474-FA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1287

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-YA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Sensor - Front Park Aid (FPA)
• Sensor - Reverse Park Aide (RPA)
