Connector End View (C108) - KNOCK SENSOR 2 (KS2)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C108	KNOCK SENSOR 2 (KS2)	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AHA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2N) [KSL2-]	97BG-14421-AHA
2	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND (KS2P) [KSL2+]	97BG-14421-AHA

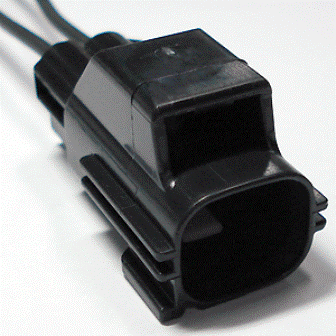

Available Pigtail Kits

Pigtail Kit Part Number WPT-994

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AXB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Knock
