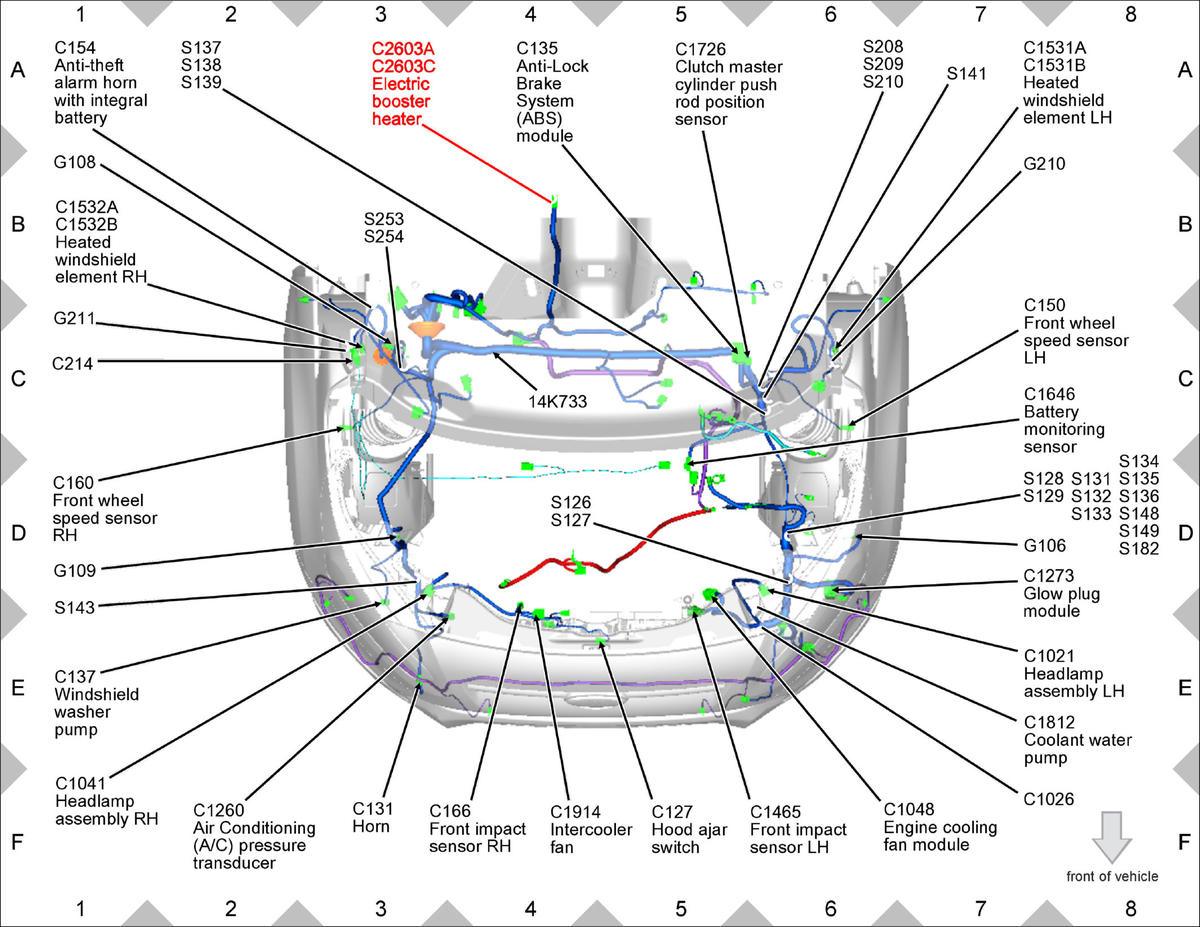

Home >> Ford >> 2017 >> Transit Connect XLT, Van Passenger >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts >> Component Location Charts >> Electric Booster Heater
