Oil Cooler: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

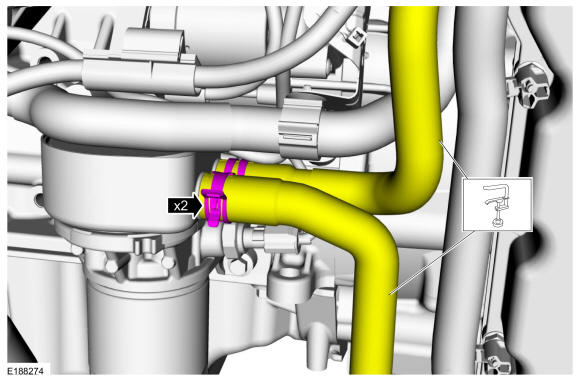

Install hose clamps and disconnect the oil cooler coolant hoses. Use the General Equipment: Hose Clamp(s) Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

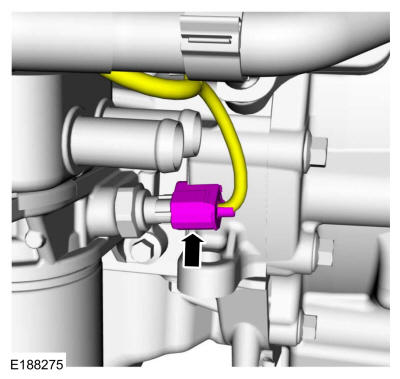

Disconnect the oil pressure switch.

Courtesy of FORD MOTOR COMPANY

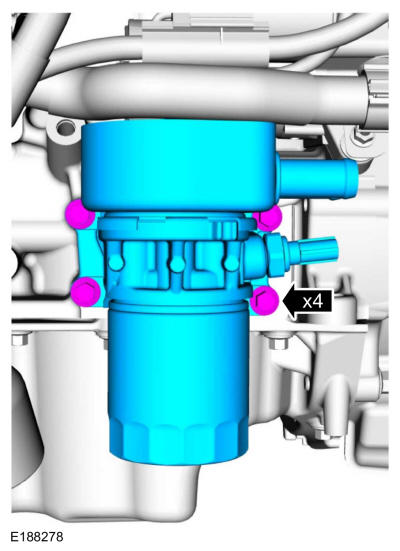

Remove the bolts and the oil cooler assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

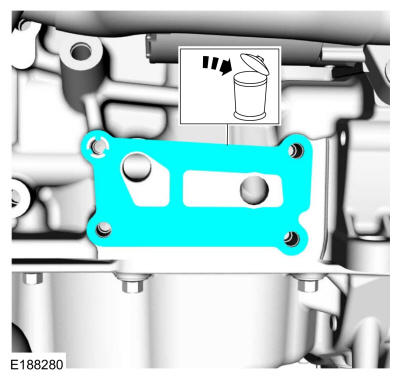

Remove and discard the oil filter adapter gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluids.

NOTE: The gasket is to be reused unless damaged.

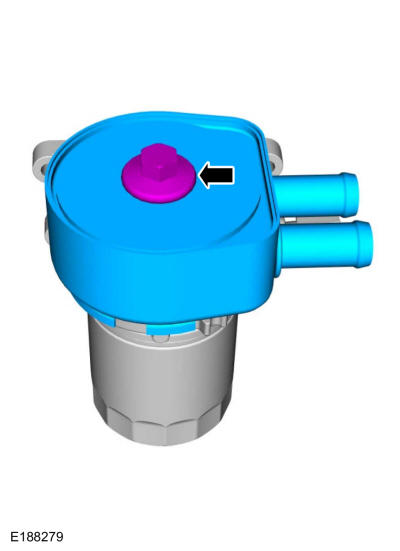

Position the oil cooler assembly in a soft jawed vise, remove the bolt and the oil cooler.

Torque:

Stage 1: 17 lb.ft (23 Nm)

Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY
