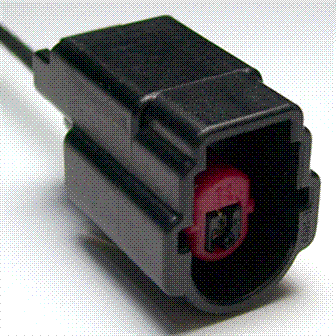

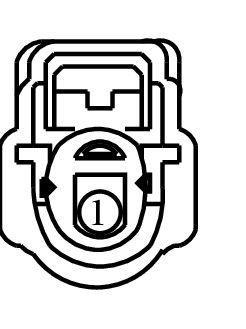

Connector End View (C1196) - IGNITION TRANSFORMER CAPACITOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1196	IGNITION TRANSFORMER CAPACITOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK04 (VT)	18	FUSE OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1253

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-KB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

1

Vehicle Uses:

• Capacitor - Ignition/Radio
