Connector End View (C1026) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1026	INLINE	BK	14K73314C361	See Below

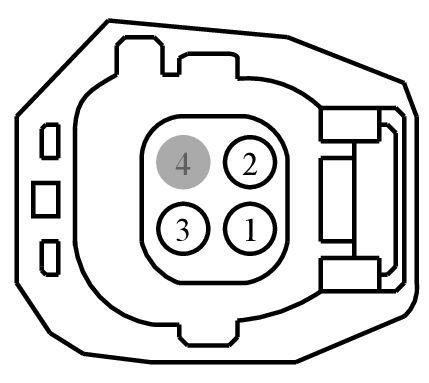

MALE

Harness

14K733

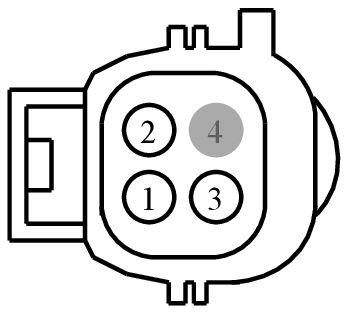

FEMALE

Harness

14C361

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD120 (BK-GN)	20	N/A
2	CE174 (YE-GY)	20	N/A
3	VE527 (BU-OG)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD120 (BK-GN)	20	N/A
2	CE177 (YE-GY)	20	N/A
3	VE526 (BU-OG)	20	N/A

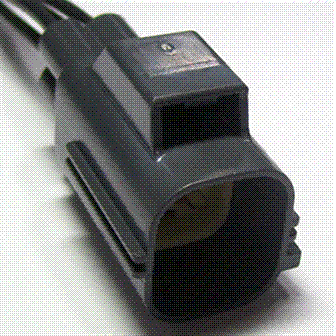

Available Pigtail Kits

Pigtail Kit Part Number WPT-1012

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-PA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Windshield Wiper
• Radio - Amplifier
