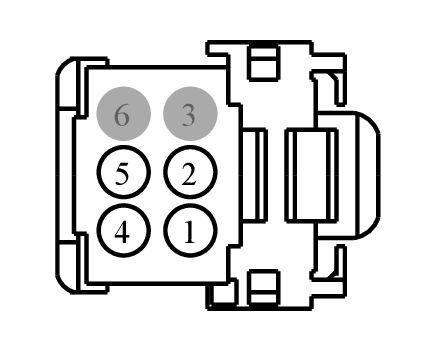

Connector End View (C3810) - DRIVER HEATED SEAT SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3810	DRIVER HEATED SEAT SWITCH	BK	15K857	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
2	GD133 (BK)	22	GROUND - PILLAR A LEFT	N/A
3	*	*	Not Used	N/A
4	CBP04 (YE)	20	FUSE - 4 OR CIRCUIT BREAKER	N/A
5	CHS32 (RD)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW	N/A
6	*	*	Not Used	N/A

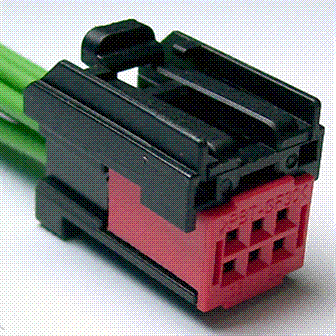

Available Pigtail Kits

Pigtail Kit Part Number WPT-1237

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PNB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Hazard Warning
• Switch - Message Center
• Switch - Start/Stop
