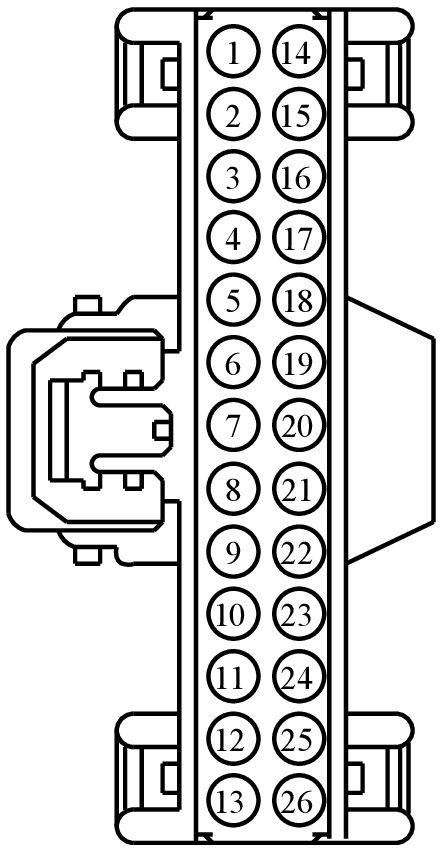

Connector End View (C2357A) - HEATING, VENTILATION AND AIR CONDITIONING (HVAC) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2357A	HEATING, VENTILATION AND AIR CONDITIONING (HVAC) MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CH232 (WH-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON	semi-automatic A/C	N/A
1	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
2	CH201 (BN-GN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	semi-automatic A/C	N/A
2	CH232 (WH-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON	N/A
3	CH201 (BN-GN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
3	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	semi-automatic A/C	N/A
4	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	semi-automatic A/C	N/A
4	GD338 (BK-WH)	22	GROUND - TUNNEL # 2ND STUD	N/A
5	CH434 (GY-YE)	22	SWITCH - CLIMATE MODE # AC	N/A
6	CHP03 (GN-BN)	22	SWITCH - PTC HEATER	N/A
7	CH202 (BU-GN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
8	CH203 (GN-BN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
9	CH204 (GY-OG)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
9	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	semi-automatic A/C	N/A
10	CH205 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4	N/A
10	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	semi-automatic A/C	N/A
11	CH203 (GN-BN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
12	CH205 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4	N/A
13	VDB06 (GY-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
14	SBP27 (BU-RD)	20	FUSE - 27 OR CIRCUIT BREAKER	N/A
15	CBP04 (YE)	22	FUSE - 4 OR CIRCUIT BREAKER	N/A
15	CH206 (YE-VT)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON	semi-automatic A/C	N/A
16	CH210 (VT-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON	N/A
17	CH209 (BN-YE)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 3	N/A
17	GD338 (BK-WH)	22	GROUND - TUNNEL # 2ND STUD	N/A
18	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	N/A
18	GD338 (BK-WH)	22	GROUND - TUNNEL # 2ND STUD	N/A
19	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	N/A
19	CH411 (BK-WH)	22	RESISTOR - REAR BLOWER # SPEED 2	taxi	N/A
20	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	N/A
20	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	taxi	N/A
21	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	N/A
21	CH434 (BN)	22	SWITCH - CLIMATE MODE # AC	taxi	N/A
22	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	N/A
22	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	semi-automatic A/C	N/A
23	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	N/A
23	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	semi-automatic A/C	N/A
24	CH202 (BU-GN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
25	CH204 (GY-OG)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
26	VDB07 (VT-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1581

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-AA

Gauge:

20

Pin material:

Silver

Cavities:

26

Vehicle Uses:

• Control Head - Manual Climate
• DVD Player
• Instrument Cluster
• Junction Box - Smart
• Module - Audio Control
• Module - Driver Information
• Module - Heated Seat (Rear)
• Module - Liftgate
• Module - Power Decklid
• Module - Power Steering
• Radio
• Switch - Heater / A/C Blower (Front)
• Switch - Message Center
• Switch - Multifunction
