Connector End View (C2353) - CLUTCH PEDAL POSITION (CPP) BOTTOM OF TRAVEL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2353	CLUTCH PEDAL POSITION (CPP) BOTTOM OF TRAVEL SWITCH	LT GY	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE903 (BU-OG)	20	SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT)	N/A
2	GD135 (BK-GY)	20	GROUND - PILLAR A LEFT # 3RD STUD	N/A

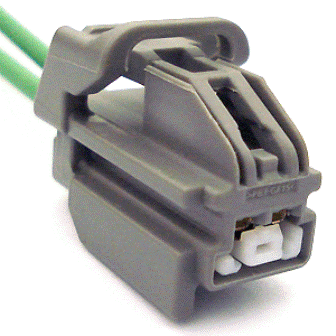

Available Pigtail Kits

Pigtail Kit Part Number WPT-965

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AEB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Element - Heated Seat
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Module - Heated Seat
• Motor - Adjustable Pedal
• Motor - Decklid / Liftgate
• Sensor - Air Charge Temperature
• Sensor - EATC In Car Temperature
• Speaker - Subwoofer
• Switch - Adjustable Pedal
• Switch - Brake Deactivation
• Switch - Brake Pressure
• Switch - Clutch Pedal Position
• Switch - Stop Lamp
• Switch - Third Row Power Folding Seat
